7 x 57 Brno

horseman2

CGN Ultra frequent flyer
Rating - 100%
163   0   1
Location
Fraser Valley
Hub Sports, Abbotsford, has a 7 x 57 Brno in on Consignment.
Has a 4 power Redfield with a post and horizontal crosshair.
Set Triggers, with a price of $750.00

I case someone is interested; It just may be someone's ticket.

Nechako said:
I just have to keep telling myself that I already have a BRNO in 7x57 and as much as I would like another, I don't really need another :( :bangHead:


Nechako

Oh yes you do! A 21H with double set triggers is a perfect twin man!:rockOn:

The only way they get better is when they are the older version with the claw mounts.:cool:

Good price if it is in nice shape! Wish mine had the double triggers.
It won't last long.

Wood stock, some checkering . . . did not look that closely as I was scared to be tempted. Phone in the AM at 604 859 8316. Probably used by a hunter. Has a barrel band for a sling. It felt pretty handy.

Nechako said:
I just have to keep telling myself that I already have a BRNO in 7x57 and as much as I would like another, I don't really need another :( :bangHead:


Nechako
You could always buy it and donate it to a poor student...like me! :D

Brno 21H

It's hard to find a 21H that someone hasn't screwed up, by drilling and tapping, or grinding the bolt handle close to the body to clear the scope. I would like to have the shorter model again. There were two length of barrels one is about 2" to 3" shorter than the other.

It is tempting to go for another one isn't it.

Has anyone ever seen an older version of the 21 or 22 models with the German claw mount as compared to the double square bridge? I will post some pics of a wicked little 9,3x62 I found.

Whoops, the 9,3 doesn't have claw mounts, but this here other one does!



Or how about this little sweetheart!

Last edited:
Great pics Noel, those sure are nice rifles.

I'm holding out for a 9.3x62, somebody please buy that rifle before I do. :runaway:

Dustin said:
You could always buy it and donate it to a poor student...like me! :D

I'm also a poor student. :D


Nechako

Nechako said:
Great pics Noel, those sure are nice rifles.

I'm holding out for a 9.3x62, somebody please buy that rifle before I do. :runaway:

Nechako

Here is the 9,3 I spoke of. If I had an opportunity to get one like this I'd be swapping out my ZG in a heartbeat.:) It is nice, but I just have a soft spot for the 21's.;) Boy it would kick!

Note how the above 21H (the scoped one) has the ZG47 style safety, they seem more often this way in the Europoean countries. They take some getting used to that is for sure. Forward for safe, and back to fire.

I think I found these on the 24hr campfire. IIRC it was in N.Y.






I think the same guy has this one too.




Can anyone tell I am having a bit of a BRNO covetting problem?:(

Don't worry Nechako, we are all in the same boat. Try having a family and keeping your gun fix fed!

Noel

Nechako said:
Noel, so you prefer the 21H over your ZG-47. I've never held a 21H so I would like hear your thoughts about the two, if you don't mind.



:eek: We really need a drooling smiley!


Nechako

It might be a bit premature for me to judge the ZG this early in the game, I have only shot it a couple times on one occasion so far. For comparison, here are two of my three for the pros and cons IMO.




The ZG is design has a bit tighter pistol grip, and thicker too for a bit better grip. This would help for those with smaller hands as well as be a bit more robust for the bigger chamberings ie: 10.75x68 or 9,3x64.:cool: The single set trigger is adjustable which is nice, and the single trigger/ big trigger guard combo give you alot of space for a gloved finger. You will also notice how low the scope can be mounted on the ZG47, much easier for shooting and give the gun a less bulky feel than the 21H in my first post would have.

Really my only beef is the ZG safety and the fact that it is safe in the forward position, fire in the back AND that it is on the right hand side of the reciever. The last thing I want to do when wandering in the bush is look down to see where the safety is. Again, it is only because I am not accustomed to it yet. I still prefer the safety being on the bolt stop side of the action, it is a much more natural movement (for me) to slip that one off.

The 20/21/22 whatever model in my experience seem to all have the same layout as far as the pistol grip goes, which I prefer as it is more roomy. I don't feel cramped on the ZG by any means but I just like the 21 feel more.

In my brief experience with the double set trigger I have found them to be very nice, I have only taken the rifle shooting twice but the back trigger if quite stiff (8lbs) and then the front being set as hair trigger then breaks at 1 1/2lbs Great for printing those tight groups or when you have lots of time for that shot at your trophy Mule Deer.:D

My Bride has very small hands and she is a bit uncomfortable trying to reach the front trigger on this DST 21H. Downside for this model I guess for some.

However, my other 21H I have is a single set trigger. It was like a military style pull when I got it, very draggy and gross. My Dayton Traister has fixed that in a big way, all I have to do is polish out those grooves in the trigger itself, a feeling I cannot get used to.

The only other problem I see with the 21H is they are a pain to scope. Between the drop at the heel which isn't all that bad, the bolt handle pivots way to high and will hit your scope bell unless it is jacked up like a cat in heat. IIRC, it is close to 1 3/8" above the bore. People will often grind or reweld the bolt handle and inlet the stock to give clearance and lower the scope but I cannot bring myself to do it. My CZ rings aren't pretty, but they get the job done.

It was only in the past month I found these pics I posted with the round top recievers, they IMO are much prettier than the full length groove or double square bridge both the ZG and 20 Series have. I have never played with the German claw mounts so I don't know what they are like for strength, but I imagine they are costly to build and install.

I really like the classic lines of the 21's and 22's. They are similar to the styles of H&H, Rigby, Purdey's etc. The ZG has more of a 1960's look to it if you will. It is very nice still, don't get me wrong.

Iron sights are great on both, the leaves are flat on each one, the 20 series I have seen all seem to have one standing, one folding sight for 100yds and 200yds respectively. My ZG47 has a standing for 50yds, and two folding for 75yds and 100yds. A bit tight together IMO but it should proove worthwhile when that very dangerous gopher pos up at 75yards yonder.:)

I prefer the style of the trigger guard on the 21's too. It really compliments the rifle in a way few other modified military guards ever could.

Off the top of my head that's about it. Oh yeah, one more, the 9,3 barrel has an obscene amount of freebore but it still seems to shoot well so I imagine it will be a non issue. All three of mine seem to shoot very well, as have any other reports I have heard.

It's a done deal Richard, go get a loan from Mommy, and let us know how it shoots!:popCorn:

Noel

Thanks for your report, I do agree that the 21H looks better.

I might buy the 7x57 if you guys promised not to hunt me down when I re barrel it to 9.3x62 :D

I have my eye on a rifle in the EE that I'm trying to scrape up enough cash for, so no impulse buys for me :(


Nechako

Noel,

I know that the ZG-47 was produced in 9.3x62, but I wasn't aware the the Mod 21 & 22 were also made in this caliber? Please explain!

Thanks,

Vasa

Vasa, there are guy's much more educated on this topic than I am. I only know what I have scraped up off of here from them!

I believe you are very correct in that no 21H was ever factory chambered in the 9,3x62. I believe the fellow had the barrel built and retained the factory irons.

To my knowledge, the 20 series came in 6.5x57, 7x57 and 8x57.

There is enough room in the mag well to go 9,3x64 Brenneke if you really want to punish yourself. My 8x57 is only 6 1/4lbs!

The ZG47 came in American chamberings that I am not too aware of except for the 270 and 30-06 of which I have found a couple of. As well as 7x57 like Nechako has. Beyond those I am not sure.
RGV, nrut or BRNO375 would know better than I!
They also came factory in the 9,3x62 as you mentioned, and the 9,3x64Brenneke and the 10.75x68. I know of two 64 Brennekes, one in N.S. one in B.C. and of only one 10,75. The same fellow in N.S. has it too. A nice little Black Bear or Moose gun even, a .423 caliber 347gr bullet in the 2200 to 2400 feet per second range IIRC.

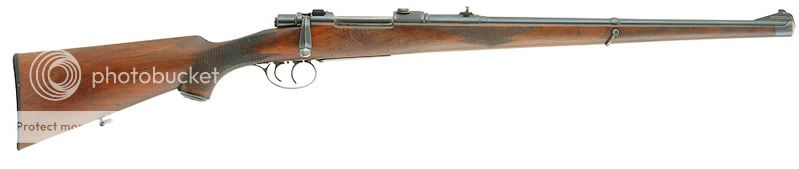

Something every young lad should have!

This one is from the 24hr Campfire too, It is a rebarreled 21H, chambered in either 9x57 or 9,3x57. A very nice carbine to pack in the hills.

Last edited:
Nechako said:
Thanks for your report, I do agree that the 21H looks better.

I might buy the 7x57 if you guys promised not to hunt me down when I re barrel it to 9.3x62 :D

I have my eye on a rifle in the EE that I'm trying to scrape up enough cash for, so no impulse buys for me :(


Nechako

That would be one cool little rifle Nechako, I would chase you down, but only to try it out!;) One day I might try the same thing!:D I would likely find a 7x57 as the platform, it seems they are most prevalent. If it is a round top reciever or chambered in 6,5x57 I wouldn't dare. I don't think there are many around, unless it was a grey rat.

Borrowed this from ALF on the AR forums.

From my own database and research regarding the ZG47 Rifle:

The ZG47 was designed in 1947 by Otagar Galas but rifle ZG47 in cal 9.3x62 with SN 00001 wears a 1950 date stamp.

Here are some facts regarding the ZG47:
THE GALAS RIFLE: ZG 47:

This rifle is viewed by many as the pinnacle in Mauser action development ( Jon Speed) and represents arguably of the finest factory production rifles ever made.

The ZG47 as a model, unfortunately is relatively rare and production short lived, in that production only saw 20,000 rifles made.

The heart of the Galas rifle lies in the modified standard length Mauser 98 action with solid left sidewall and double squared action bridges.

The originator of this rifle was the engineer Otagar Galas of Zbrojovka Brno and is designated by the model number ZG 47 indicating design in 1947.

The rifle with SN 00001 with date stamp 50 (1950) was made in cal 9.3x62 Mauser and belonged to the late Tony Harrison of Cape Town South Africa.

It was originally imported by Bren Arms formerly of Cape Town in the RSA. The rifle is currently thought to be in possession of Mark Harrison, son of the late Mr. Harrison Snr. ( source Casey Lewis SA)

Although early advertisements claimed that the ZG47 was only made in 8 standard caliber offerings it would appear that other calibers could be special ordered in this rifle.

Rifle ZG 47 with SN 05217 dated 1956 was made in cal 8x68S and a rare 9.3x64 Brennecke
SN 02862 with barrel date stamp 65 and action stamp 57 is noted.

ZG 47 rifle configurations:

There is a relative paucity in the modern US bderived gun literature regarding the specifications on the Galas rifle and specifically regarding origins.

The following variations are noted from early factory parts catalogs on the ZG 47 rifle.

BARREL CONFIGURATIONS:

The basic barrel length on the ZG 47 was given as a 60 cm / 4 groove barrel in two weight configurations.

1.HEAVY BARREL: 7X57, 7X64, 8X57JS, 8X60, 8X64S, 30-06, 270WIN, 9.3X62

2.LIGHT BARREL: 7X57, 7X64, 8X57JS, 8X60, 30-06, 270WIN

STOCK TYPES:

6 basic options some with subdivisions.

1. Standard Stock: In 3 configuartions: �BASIC, RELIEVED and LIGHT�
2. Deluxe �A�: also in �BASIC, RELIEVED and LIGHT� (No schnabel but with a rounded black tip and Monte Carlo cheekpiece)
3. Deluxe �B�: Schnable fore end in �Basic�, �Relieved�, and �light� configuration.
4. Deluxe �C�: Slender stock
5. Mannlicher Stock: Optional
6. Super deluxe:

Caliber choices:

The ZG 47 was offered in the following standard caliber choices:

7x57 Mauser, 8x57S, 8x60S, 8x64S, 30-06, 270 Win and 9.3x62 Mauser.

Special order rifles could be had in 10,75x68 and 5.6x61 Vom Hofe as per Brno catalog

ZB also offered as special order any �Rimless cartridge no longer than 3.33 inches or 85mm� thus rare rifles have known to exist in calibers such as the 9.3x64 Brenneke and the 8x68S.

The factory poster for the ZG 47 rifle recommends the 8x64S caliber as the �universal� caliber for all hunting.

Apart from the sporting configurations two sniper rifles were also made. The ZG47 SN as well as a ZG 51 SN. The ZG51 derived from the Moisin Nagant Rifle and not a Galas pattern.

These were built in cal 7.92x64.

A single shot target rifle ZG 474 in cal 7.92x57 is also noted.

( this information has been collected from various printed sources as well as original factory catlogs and parts lists)

Scope mounting:

The ZG 47 like it�s predecessors sported the doubles square bridge action with integral dove tail grooves for scope mounting.

This feature was part of the latter 721 and 722 models, the ZG 47 series, the later Koucky Brothers series ZKK , ZKM and ZKW Rifles. Current CZ rifles still retain this feature.

The original BRNO scope mount for the ZG 47 utilized as one piece mounting system used to mount the option of Meopta scopes made in Czechoslovakia


I have read that there were also a few one of a kind factory rifles such as a 404 Jeffery.


Nechako

Nechako said:
I have read that there were also a few one of a kind factory rifles such as a 404 Jeffery.

In the early 70's, the 602 was available in 358 Norma and 404 Jeffery.

The Model 22 is the carbine, and the model 21 the rifle. H stands for half stock, and F for full stock.

I have a 22H, 21F, ZG 47, and ZKK 600. I prefer the 22H: THE Mountain Rifle.

I'm looking for a 602 in 404J, a ZG 47 in 10.75x68, and a 22H in 6.5x57. :D

If you are in Langley I can't imagine you haven't trotted over to Hub's for a look . . .
I would like to hear your version of the rifle as my experience with BRNO's puts me in the "Mere Novice" category.

Only 20 000 ZG-47;s made, hmmm...., I know where there are about a dozen of them for sale....:D
The 20-series Brno was also made in the 8x60S. Rebarrelling or reboring an M21/22 to 9.3x62 would make one sweet rifle, probably on the light side for a 9.3.

Vasa
