We are very proud to be stocking the Inline Fabrication line of reloading machine accessories. Inline Fabrication makes amazing strong arm style mounts as well as accessory brackets, die holders, primer tube holders and case feeder mirrors. The mounts spread the load of the machine over a much wider surface area which increases rigidity and they also raise the machine to make it more comfortable for the operator. They also offer roller handles for the Dillon 550 and even the Square Deal B!

In addition, they make custom LED lighting kits for reloading machines that provide light to the turntable which improves quality control and safety (checking for powder for example in each case).

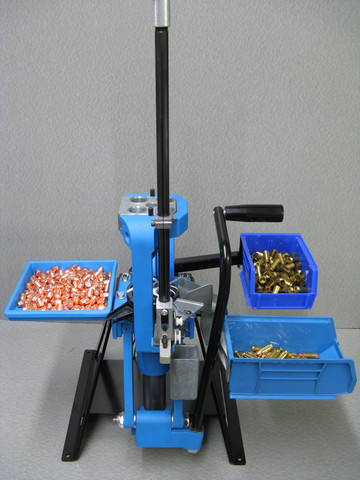

Their most innovative product is their quick change Ultramount which allows people with limited space to swap different presses onto a single mount in 30 seconds! You must see the video below to see how amazing this system is:


You can see all the accessories on our web site: http://fasttoys.net/ca/Inline-Fabrication-Canada/






Attachments

  • inline550_skylight2.jpg
    24.7 KB · Views: 2,626
  • ultramount_550b.jpg
    61.4 KB · Views: 2,622

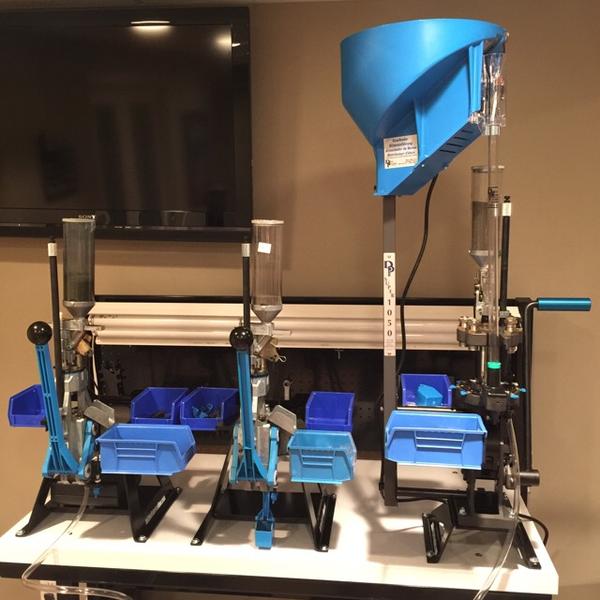

Here is 4x2 bench with 3 machines on their mounts. image.jpg

The Square Deals are on quick change mounts which can be moved or swapped out in 30 seconds or less.


Attachments

  • image.jpg
    45.8 KB · Views: 2,617
I bought the Inline light for my Dillon, don't dilly-dally, just get it. An ounce of prevention. One of the least expensive things that make the job a lot safer and more foolproof.

The lights themselves are a must have to improve safety. You position the light so you can see that there is powder in the case before you pull the handle to advance the turn table.

For many years, I have been using a Dillon Square Deal B attached to a Princess Auto metal table. The table was not very rigid and would flex more than I liked and the press wasn't at the greatest height for ergonomics. My neck and back ached after reloading.

I decided to finally treat myself and my aching back, neck and hands and went all out with a new Dillon 1050 press, primer tube filler and a whack of Inline Fabrication upgrades. Since we now sell all these, it was a great opportunity to test them all out.

Here are some of the details:

Machines:

Two Dillon Square Deal B's:

One with large primer installed and the other with small primer installed. These are installed on 9 5/8" Inline Fabrication Quick Change Mounts with LED lighting systems and dual bin racks. The quick mount lets you add or remove a machine in less than 60 seconds and the mounts a built like TANKS. It greatly spreads the load out on the table and also raises the machine to a more comfortable height. The mounts let you add a variety of accessories including extra bins, die holders etc.

One machine has the Bob Chute installed for the primers. I'll be upgrading the other one shortly.

Dillon 1050 with the following upgrades:

Mr. Bullet Feeder
Bob Chute for the primers into a bucket
Bearing shell plate and low mass detent ball
Inline Fabrication 4" Ultra Mount
LED Lighting

The bench is a Princess Auto steel table that I bolted on two sheets of 1/2" MDF that are glued together. This eliminated the flex in the table. The back of the table has a peg board which is great for holding wrenches and other accessories. I attached two power bars to the bench as well as fluorescent lighting (you can never have too much light). I painted the wood white to get the maximum amount of light.

This is the shell plate bearing and low mass detent ball. These help to eliminate powder spilling when you turn the shell plate with cases filled near capacity. You can also see the Inline Fabrication LED lighting system installed over the bullet seating die. This allows you to see how much powder is in the case which is fantastic for safety.

View attachment 60173

Here is the Dillon 1050 case feeder with the Mr. Bullet Feeder control mounted to the 1050. The Mr. Bullet feeder is an amazing feat of engineering and fun to watch.

View attachment 60174

Here is the Dillon low primer alarm along with a micro switch controlled round counter.

View attachment 60175

Here is the Inline Fabrication case feeder mirror. This allows you to see what is happening inside the case feeder without standing on a ladder. It is on a fully adjustable arm.

View attachment 60176

Here are the Inline Fabrication Bin Barriers. They greatly add to the capacity of the bins preventing rounds from falling out the front.

View attachment 60177

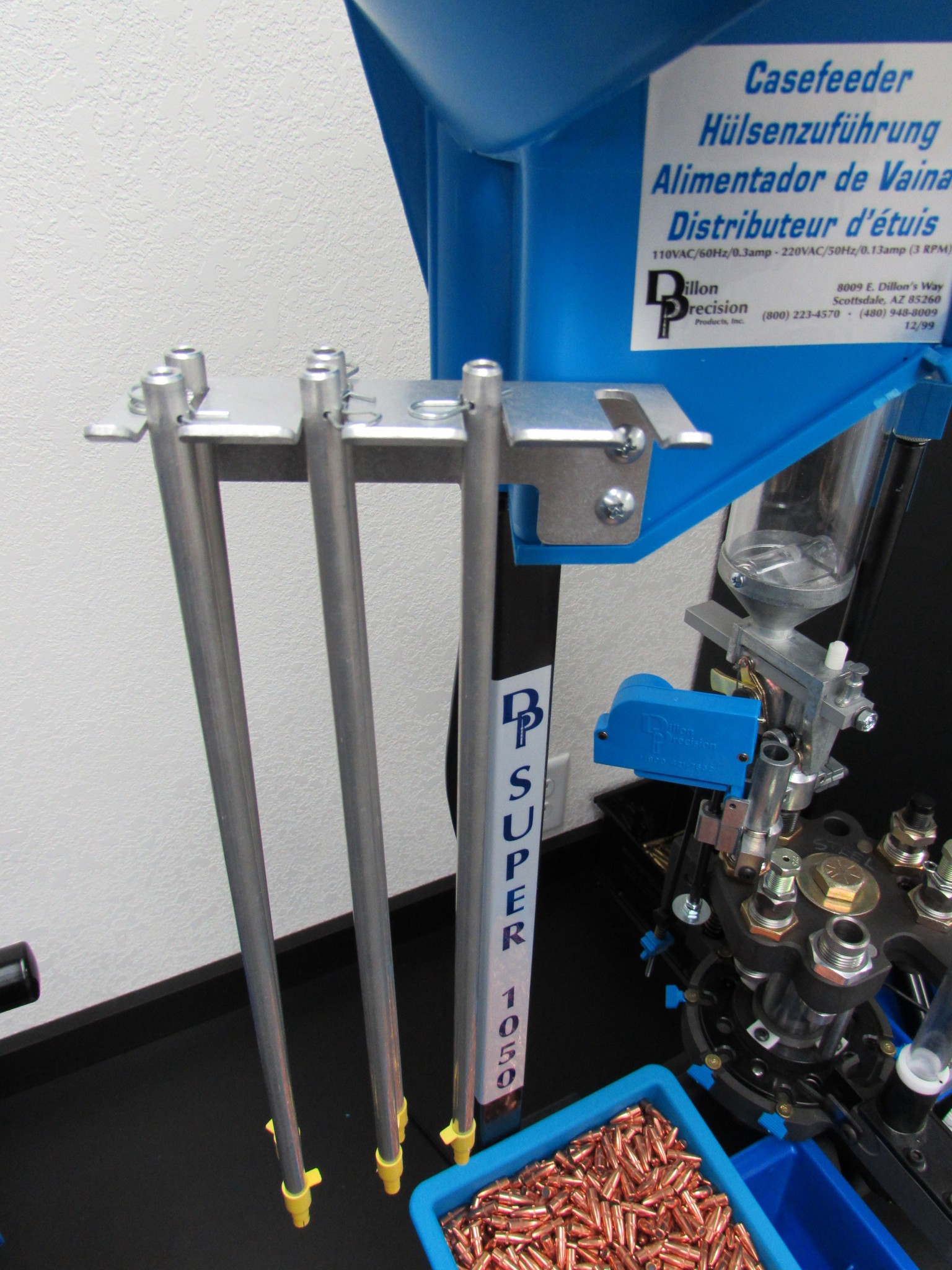

Here is the Dillon Primer Filler and the Inline Fabrication primer tube holders. The primer filler works great and saves all the hunting and pecking we usually have to do to fill our primer tubes.

View attachment 60178

Here is the completed bench. That is 3 machines on a 4x2 table

View attachment 60179

We sell the Inline Fabrication and Dillon line so check out our catalog for more details!

Do you carry Inline Fabrication accessories for the Hornady line as well? I have a Lock n Load AP press and want to buy accessories for that.
Thanks.

We can bring in anything they sell but it would have to wait until the next stock order. If there is something you want to special order, just give us a call.

We will be placing an order with Inline Fabrication on Wednesday. If there is something you want that we do not normally stock, we can bring it in with this stock order.

Please email us at sales@fasttoys.net with the parts you want and we can get you a price. Please do not post here or PM asking for pricing.

We got in some awesome new products from Inline Fabrication!

These include:

Quick change system storage plates: Now you can store your press, vise, swage etc on the side of your bench or the wall when not in use. It only takes 30 seconds to swap presses and accessories with this sytem!

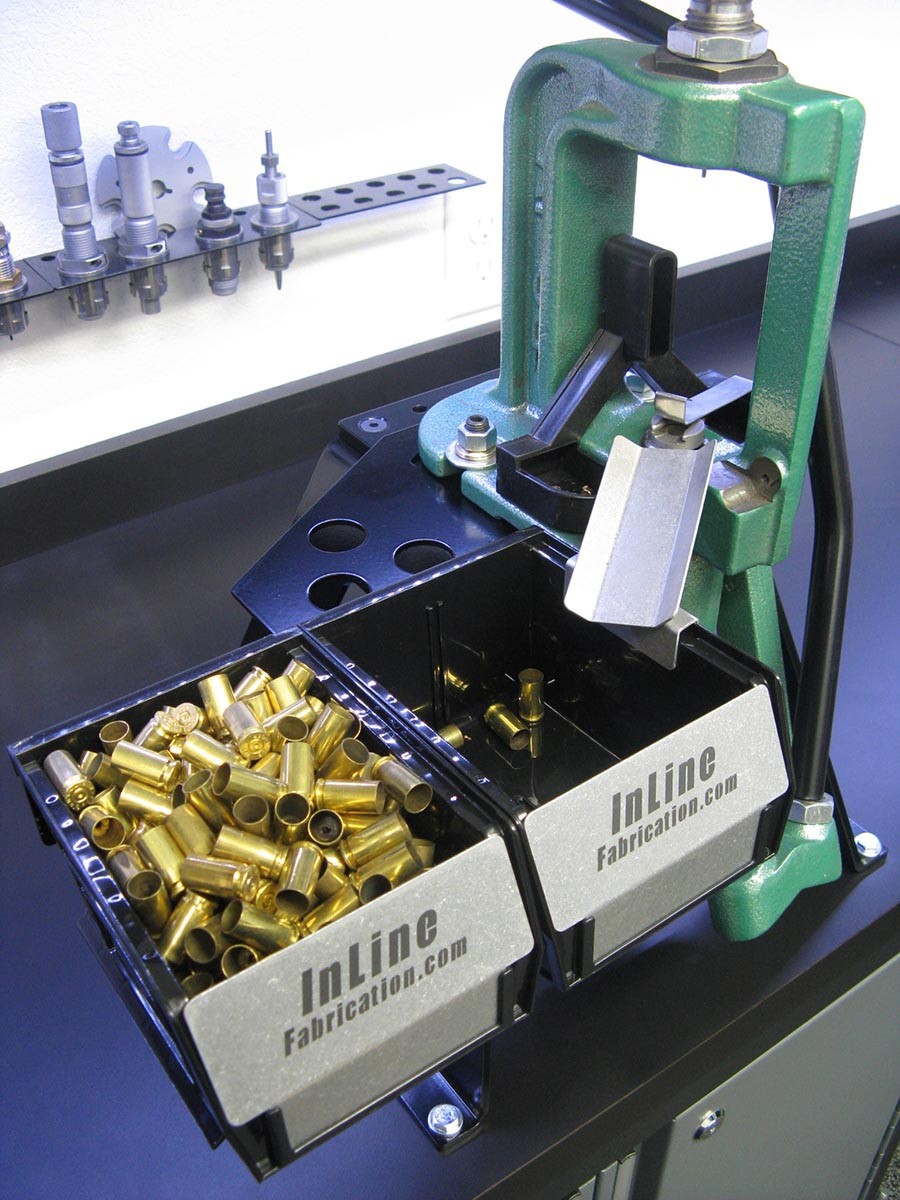

RCBS Case Ejector System: This system ejects your cases for you, allowing you to leave your right hand on the press lever and your left hand dedicated to feeding brass. It speeds up your single stage reloading significantly. Kit includes: Base plate, Ejection spring assembly, discharge ramp and 2 bins.


cdog said:
Do you happen to have the co-ax light kit on hand?
If not I would like to order one.
Click to expand...

We do not have that kit in stock. It would have to be ordered with our next stock order which is probably 3-4 weeks away. If you want to order, give us a call.
