Cooey M39 firing pin dimensions?
- Thread starter Dantforth
- Start date
black powder
CGN Regular
- Location
- Saint Hippolyte
i have one ..length is 0.3160 ....diameter is 0.1225 there is also a retaining slot on the pin ..good luck installing the pin ..pain in the axx
Last edited:
Thanks "Black Powder". I surely wish I had a close-up of the pin to see the waist in the center. You obviously have disassembled these on more than one occasion? It appears to me that, if I remove the ejector, then the pin which retains the firing pin will be visible and easy to punch out and the firing pin will fall out the front face of the bolt? I have a complete bolt here as well as the one which has everything but.....no firing pin. If I could get the FP in my hand I could copy it. David
PS....sad but true! While trying to ease the extractor out of the bolt it snapped off. Now I look for both an extractor and a firing pin. I always was a lucky fart.
PS....sad but true! While trying to ease the extractor out of the bolt it snapped off. Now I look for both an extractor and a firing pin. I always was a lucky fart.
Last edited:
black powder
CGN Regular
- Location
- Saint Hippolyte
ok here we go ..send me an addressed envelope with a stamp .i will return it to you with a fire pin [no charge]
" if I remove the ejector, then the pin which retains the firing pin will be visible and easy to punch out and the firing pin will fall out the front face of the bolt?"

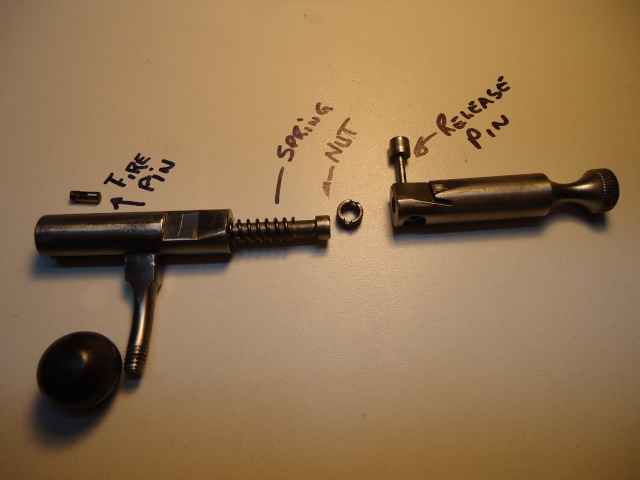

if u remove the extractor the pin which retains the firing pin will NOT be visible because there is a small hidden pin that holds the fir pin in place .when u receive my fire pin u will see the slot on the fire pin and it will give u an idea where the hidden pin is located.
" if I remove the ejector, then the pin which retains the firing pin will be visible and easy to punch out and the firing pin will fall out the front face of the bolt?"
if u remove the extractor the pin which retains the firing pin will NOT be visible because there is a small hidden pin that holds the fir pin in place .when u receive my fire pin u will see the slot on the fire pin and it will give u an idea where the hidden pin is located.
