CZ-858 Stock Removal 1/2"Socket

[ciccio]

Yesterday I filed down a 1/2" drive socket to remove the big flat-head slotted bolt that holds the stock in place.

Worked very well with a 10 " extension.
I don't need it anymore so if anybody wants it, it is for sale in the EE.



[DIRTBIKEMIKE]

intresting idea.i used a bit from a impact driver in a socket with an extension. you can get the impact driver cheap at princess auto.if ya hit the ext a couple times before ya try and take it off made it easier.i have done 2 of these so far.they are sure tight big czech cranking on those screws



[Craftsman 441]

What is the width and depth of slot in the stock bolt? I'd like to make one.



[joe n]

Nicely done! I just used a bit of heat on mine and was able to put a large flathead on it.



[Deckard]

I made something a while back...



[ciccio]

I bought the socket at Princess Auto for $18.95 plus taxes.

From my plastic vernier, the diametre of the bolt head is 18mm, depth is approximately 2.5mm and width is 2mm.

Filing the socket to fit the bolt head was the hardest part of the operation.



[PerversPépère]

Impact driver

The holding piece of a 3/8" impact driver is really good for getting at slotted screws in stocks.
It is slimmer than a standard socket.
Just take it off the impact driver and slip it an a 3/8" square socket ratchet extension and put a ratchet at the other end.
It works very well.
If the screw is very tight, use the impact driver at the end in place of the ratchet for loosening the bolt. You run less risks of mangling the driving slot that way.
PP.



[markl]

i could've used this thread a couple days ago...

the route i took had a lot more sawdust involved



[V1]

Yeah... I was about to take a hacksaw myself but this ugly looking buttstock feels surprisingly comfortable to me and my wife! I'd better get a bigger screwdriver. Soaked screw in WD40 last nite.



[skirsons]

Dremel.

I really cut it all up. I saw it as my only option after so many hours of trying.



[V1]

Dremel... Hmm... Then what? A wrench?



[skirsons]

I actually cut it in such a way and area that there was no more pressure after I finished cutting. So essentially you could use your fingers to unscrew it. Then I discovered the locking nut, which I didn't even know existed until after I managed to get the old stock off.

I've been getting flak for doing this in another thread. But there was no god damn way that screw was coming off and no one could convince me otherwise.



[markl]

I've been getting flak for doing this in another thread. But there was no god damn way that screw was coming off and no one could convince me otherwise.

flak for what? the destruction of a fugly stock? turn it back into the sawdust it started from...



[skirsons]

flak for what? the destruction of a fugly stock? turn it back into the sawdust it started from...

Apparently some people find it quite charming.



[Deckard]

"Bust a stock, prepare for the mock."



[skirsons]

Thank you thank you!... most of all I'd like to thank Jesus.. and Satan.

I better go pump some iron.



[johnsks]

tried the screw driver and a modified tire iron finally straitened out a pry bar and a little bit of grinding worked out good with the damaged screw head



[slicknick]

I used the same screwdriver I used on the buttstock of my SMLE. It worked fine without resorting to destructive measures



[mtlbomber]

same thing here 12" flat tip and a little bit of elbow grease



[Missing Something]

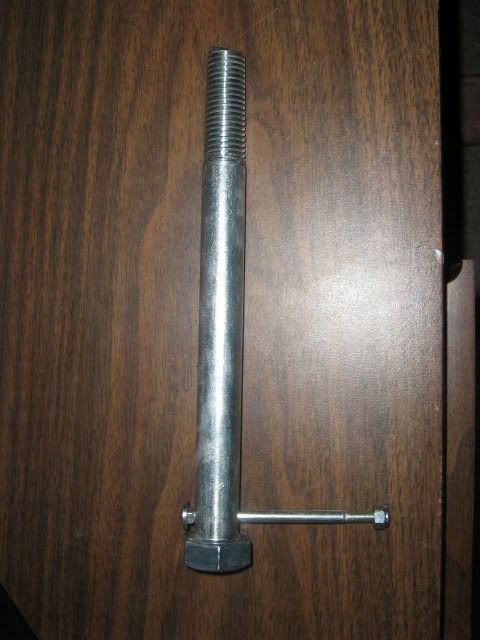

My tool

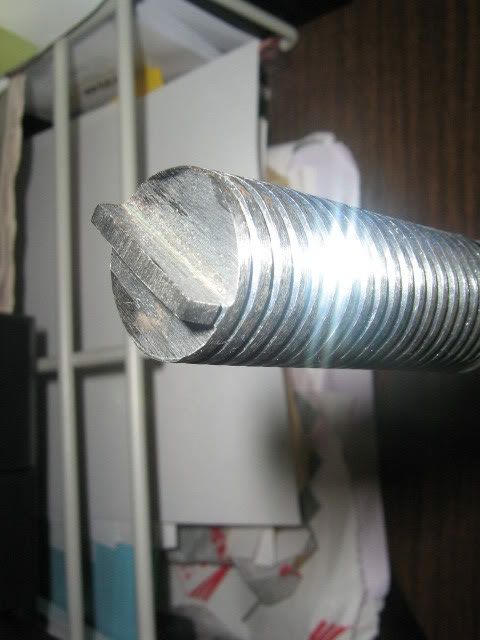

11" long bolt that I made into a screwdriver....
