Help identifying choke tube
- Thread starter MBiz
- Start date
BattleRife
CGN Ultra frequent flyer
- Location
- of No Fixed Address

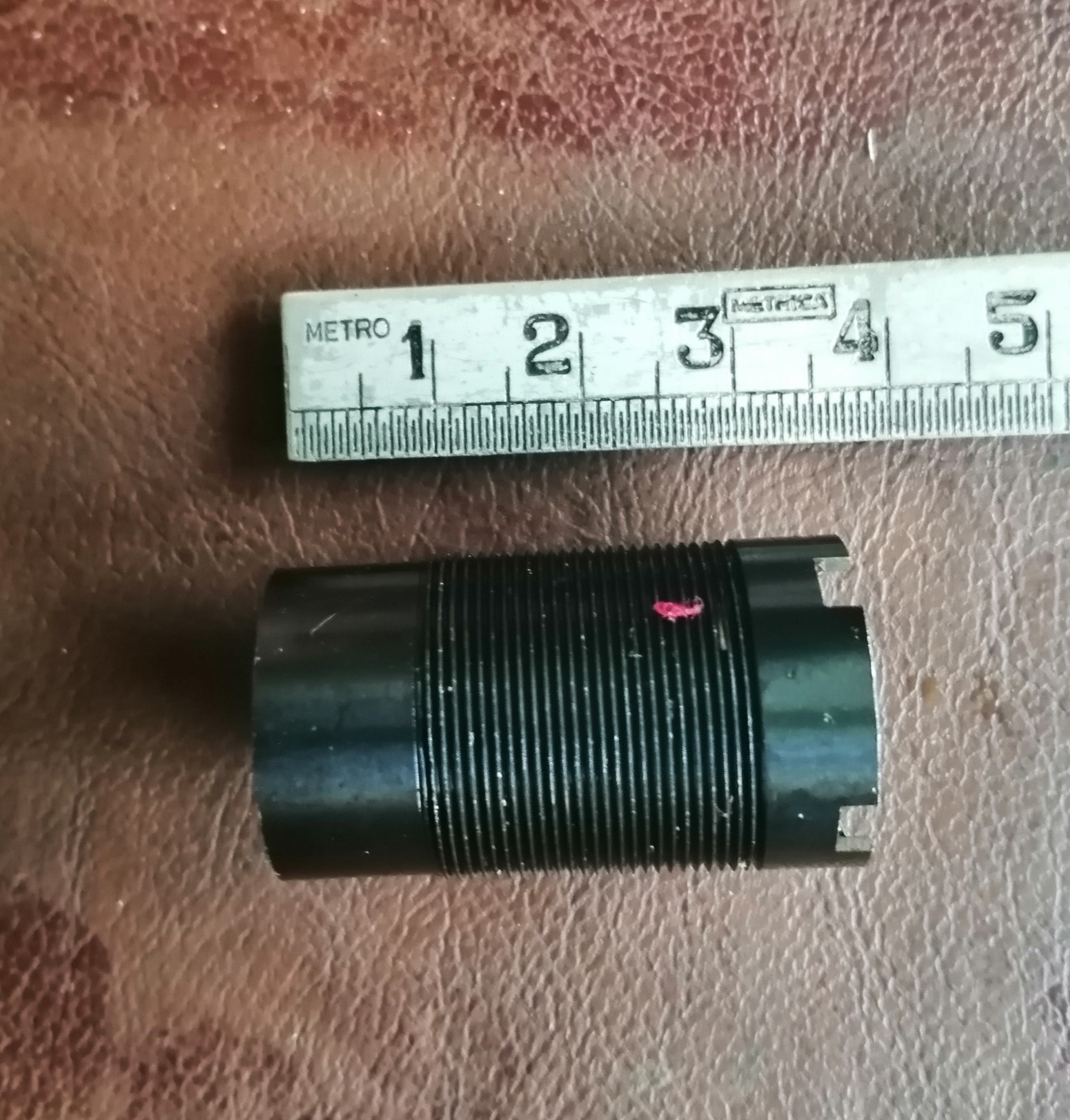

According to that ruler, I would put the length at about 37mm.
The small graduations are 1/20th . 20 units from the end of the ruler to the 1 mark . or possibly .5mm graduations . however the proportions of the choke just don't look like a invector choke to me . the skirt end looks long and the muzzle section ahead of the threads looks short .
Last edited:
The browning invector chokes I have measure 37mm over all length . the skirt length is 4mm . the muzzle section ahead of the threads measures 16mm . and the threaded section is 17mm .hope this is of some help . being that your contact is in Italy there is a very good chance the chokes may be a beretta mobile choke or a very close version of it . Browning invector choke below .
Attachments
Last edited:
Falconflyer
CGN Ultra frequent flyer
Beretta Mobil Chokes are longer and have the threads all the way to the muzzle end.
1963beretta
CGN Ultra frequent flyer
- Location
- Vaughan, Ontario
Definitely not MobilChoke.
Im with Brybenn on this one. These appear to be accuchoke/winchoke. Invector chokes are longer with a shorter skirt then what is pictured.
Im with Brybenn on this one. These appear to be accuchoke/winchoke. Invector chokes are longer with a shorter skirt then what is pictured.
Last edited:
Given the provenance (Italy) these could be for some long discontinued and forgotten Italian system, in which case they would be unknown here. There were a number of these proprietary systems invented and used by dozens of small makers, mostly gone now. Even some of the better known makers like Franchi, Perazzi, etc changed choke systems in the early years of choke tubes, sometimes several times.
this is from my Marocchi:
length is 45 mm.
It's an OU but I have no idea what model or year.
Wish they had put a model number or something on the gun.
Doubt it since your contact is from Italy and not Russia.
I think Ashcroft (post #13) is on to something.
Any idea how old these tubes are?
Falconflyer
CGN Ultra frequent flyer
Most manufactoers have long ago switched to longer choke tubes so I'd say that this is a design that was likely discontinued some decades ago. Some of the Turkish guns are still using short tubes such as the Wby Sa-08 that is made by ATA but these tubes are not the same as they are.
