Hello

Can anyone provide any advice, tips or help on either DIY Pillar bedding of a Tikka T3 or point me in the direction of someone who does this in Southern Ontario. My current factory T3 tactical shoots very well but i would like to upgrade the stock (mcmillan A3) and bed it, if its even necessary.

Cheers

I pillar bedded my T3 sporter. It was very straight forward. I used the pillars that came with Lumley arms bottom metal. I think you can buy a bedding kit on its own though.

I built a jig to hold the stock and then used a drill press to drill out the action screw holes. Then used Devcon 10110 to glue them in.

I also bedded the action right after installing the pillars.

Ok sounds good, kona i too am looking at the lumly arms bedding kit as well. It sounds simple enough, is there anything i should be careful about?

Guntech, i havent asked mcmillan, but i will, not a bad idea

tac guy can you shed any more light?

Nickoslav said:
Ok sounds good, kona i too am looking at the lumly arms bedding kit as well. It sounds simple enough, is there anything i should be careful about?

Guntech, i havent asked mcmillan, but i will, not a bad idea

tac guy can you shed any more light?
Click to expand...
i pillar bedded mine with a thin layer of Vaseline and devcon!! 3 inch group at 900 yards perfect conditions 260AI

Nickoslav said:
Ok sounds good, kona i too am looking at the lumly arms bedding kit as well. It sounds simple enough, is there anything i should be careful about?

Guntech, i havent asked mcmillan, but i will, not a bad idea

tac guy can you shed any more light?
Click to expand...

The biggest thing to think about is how you want to bed the recoil lug. You have to insure that the lug is in contact with the action. I used devcon to "bed" the lug into the slot in the action. Then I bedded the action and lug into the stock together and when I popped it out the lug stayed in the stock. (I put kiwi shoe polish on the action before bedding the lug to the action).

Since doing mine I read about a guy using shim stock to wedge the recoil in the slot. (with the wedges towards the rear with the lug contacting the front of the slot.) When I bed a tikka again I'll do it this way. Also when I rebarrel I will use a remington style recoil lug and ditch the tikka one all together.

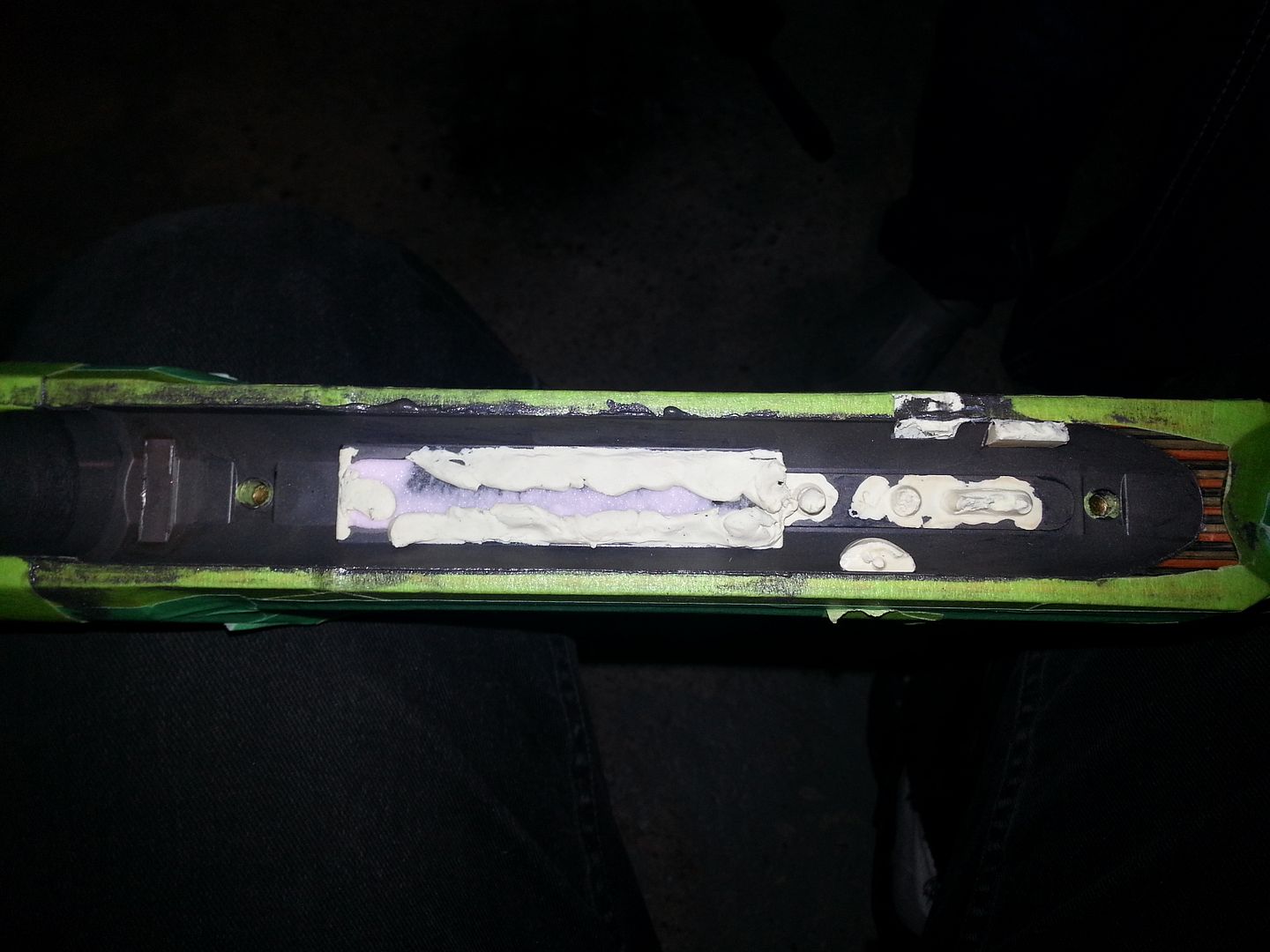

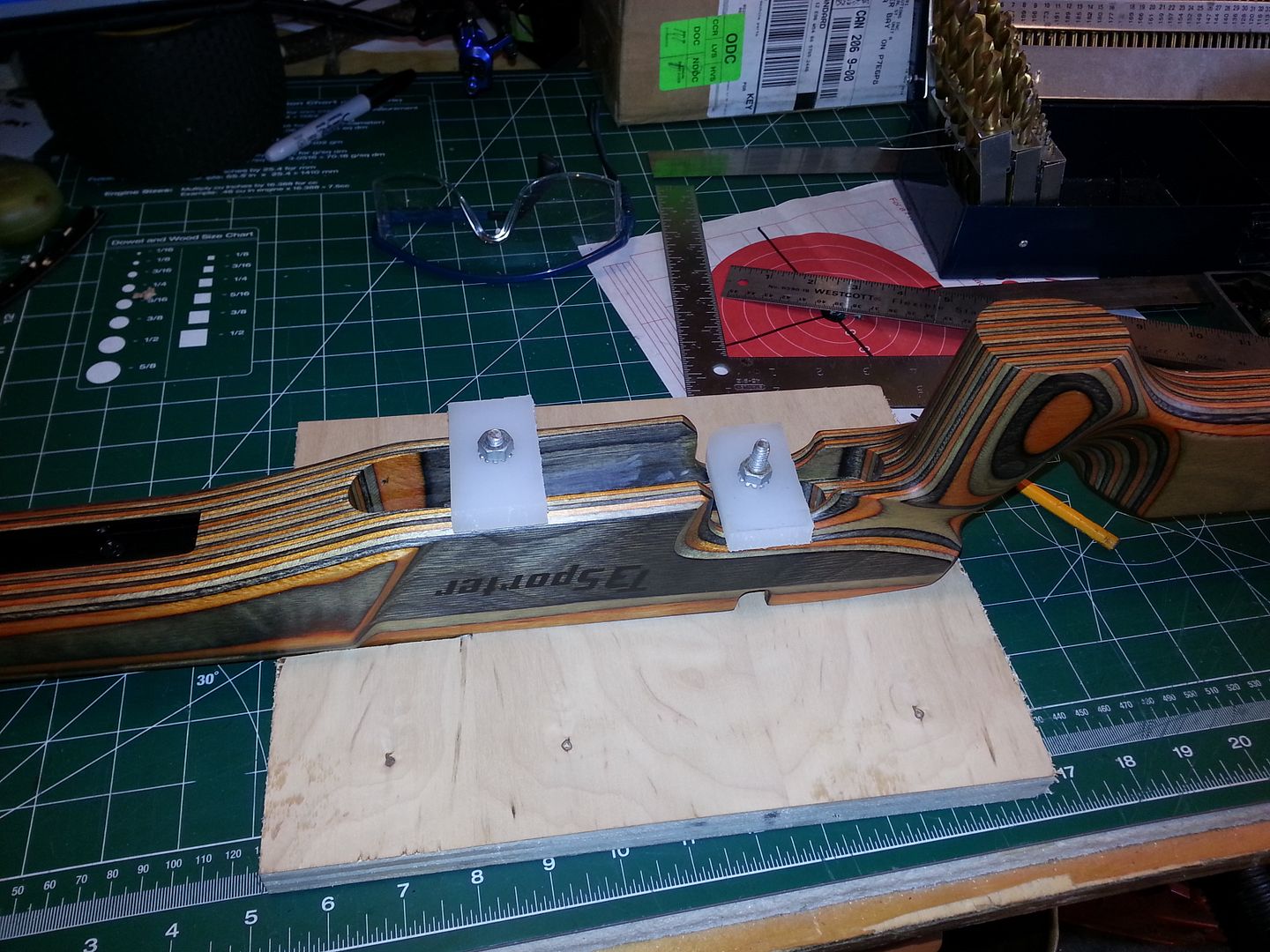

Here is a pic of the jig I made to drill for pillars. And the bedding job after I popped the action out.









If I were you I would upgrade the plastic stock to a mcmillan and then bed it with out pillars. Mcmillan will tell you that pillars aren't needed but to add them if you will sleep better at night.

BCBRAD said:
Tikka T3 Tactical, 300 WM, 208gr A-Max, H-1000, Vortex 4x16 PST FFP in Burris Signiture Zee Rings. YoDave spring set at 1.1 lb and steel recoil lug.
Its usually a 0.3 moa at 200m and ~0.7 moa further out.
Click to expand...
if you can shoot a 4 inch group 5 shot with a 4-16 1000 yards that is craziness buddy... Never heard of the likes!! Good for you.....I could never in this world do this ####, I need a 12-50x56 Schmidt and bender to even be an the same page!!!that is a whole lot lot of kickin butt right there......

The Tactical Guy said:
if you can shoot a 4 inch group 5 shot with a 4-16 1000 yards that is craziness buddy... Never heard of the likes!! Good for you.....I could never in this world do this ####, I need a 12-50x56 Schmidt and bender to even be an the same page!!!that is a whole lot lot of kickin butt right there......
Click to expand...

Got lucky that day, but I shoot a lot and am real fussy on the hand loads, plus the conditions were very good, there were 4 others in the 4" zone that day.
