RCBS case trimmer help requested

[piker]

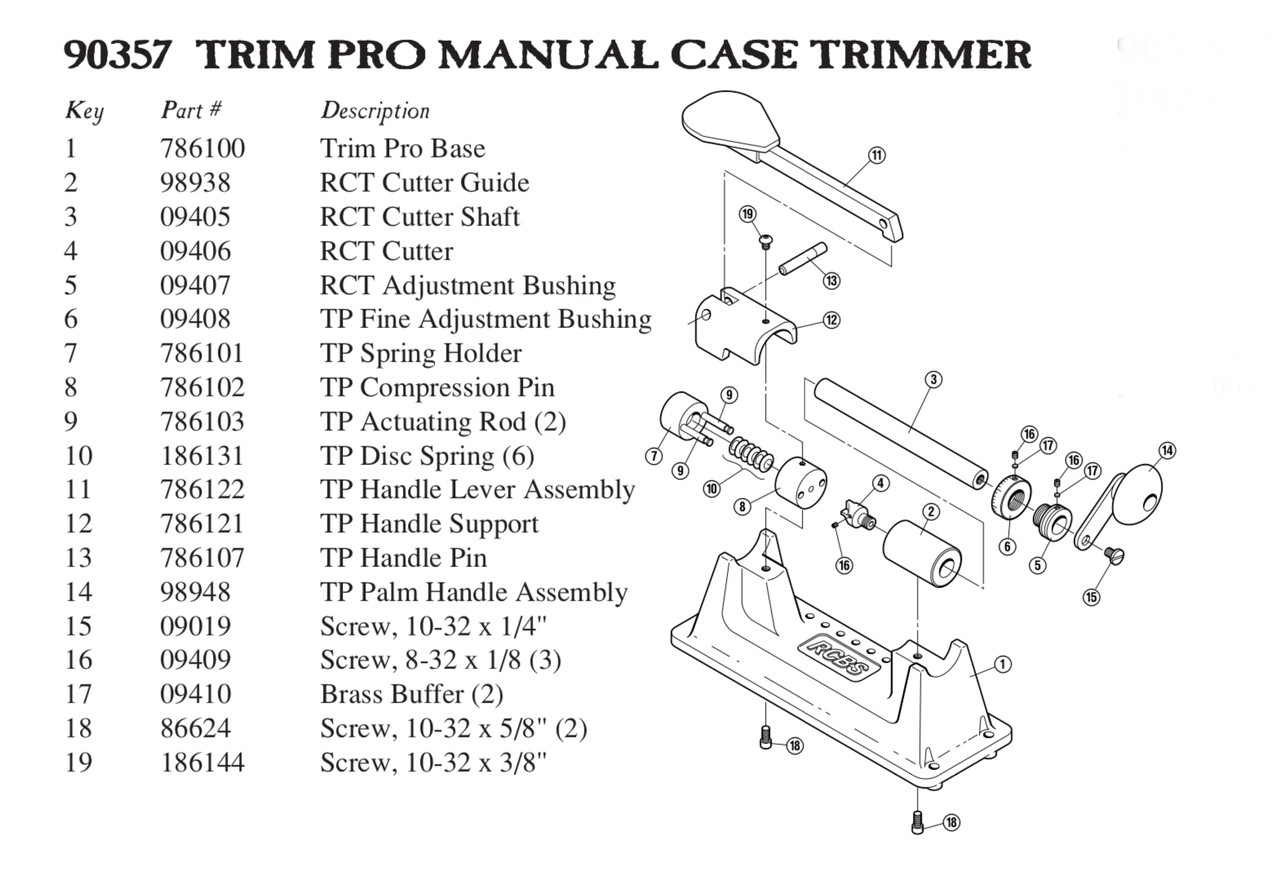

I ended up with a rcbs trimmer that is missing the cam lever arm (part #11 in the picture). My brother has a machine shop and has offered to make the part and send it to me, if I supply him some dimensions. I’m hoping someone can give me some dimensions especially of the cam end.



[DiMP]

Have you tried reaching out to RCBS? My understanding is they have some of the best customer service in the entire industry. I wouldn't be shocked if they just send you the part free of charge



[270WSMXBolt]

I have experienced their support. It is exceptional. Ask to purchase the part/s and answer the questions they ask truthfully. Do you have part #13 still?
Call 1 800 533 5000 pacific time zone. Cheers



[piker]

Thanks fellas, I sent an email but haven’t heard back yet. I believe this model has been discontinued- which is why I was looking for dimensions to have one made - but we will see.



[INTIMIDATOR]

Here's the down and dirty measurements of my lever.........from the case trimmer of course. Just grabbed it and threw the caliper on it. I don't think it needs to be super precise as long as the left side is close. Mine has the wear on it right at the bottom corner above the '.215'



[piker]

Thank you so much for taking the time to make the drawing. I really appreciate the help.
