Spearhead Machine Titanium 2 baffle radial muzzle brake -Also avalible in stainless-

Spearhead Machine

Spearhead Machine

Member
Business Member
Rating - 100%
7   0   0
Location
Markham, ON
Spearhead Machine is founded by the Chou brothers, and we are proud to introduce the Spearhead Titanium 2 baffle radial muzzle brake

Designed for the weight conscious shooter or gunsmiths. Extremely light weighing in at 28g / .987oz. while keeping a low profile, only adds 1.125″ forward of your barrel muzzle.

Proprietary true 2 baffle design. 90 degree radial ports intersect to create expansion chambers and forms true baffles for maximum recoil reduction with no concussion. Not your average radial muzzle brake. For use up to .338 caliber, 5/8-24 threads

Installs easily without strap wrenches, a tensioning key is included to ensure solid lockup. Precision machined for exceptional fit and finish, proudly machined right here in Canada.

.840" diameter, fits well with Remington varmint/sendero contours or Proof Research sendero light contour. Can also be turned down or back tapered to fit.

Also available in Stainless (Weight: 50g / 1.76oz)

Price for titanium version is $219.99 plus tax and shipping. Stainless version is $119.99 plus tax and shipping. Please contact or visit Spearheadmachine.com for purchase or more details.

Your satisfaction is our utmost priority, therefore we offer an unconditional 30 day money back guarantee. For any reason you are not satisfied, please contact us and we will arrange a full refund, no questions asked.

Thank you for your interest, we look forward to being a part of your shooting excellence.
-Spearhead Machine




Specifications for Titanium
For use up to .338 caliber
Threads: 5/8-24
Diameter: .840″
Length: 1.750″
Weight: 28g / .987oz
Minimum turn diameter .780″
Material: Grade 5 Titanium 6Al-4V for exceptional strength to weight ratio and extreme corrosion resistance


Specifications for Stainless
For use up to .338 caliber
Threads: 5/8-24
Diameter: .840″
Length: 1.750″
Weight: 50g / 1.76oz
Minimum turn diameter .780″
Material: 303 stainless steel for exceptional corrosion resistance and strength

Last edited:
Thank you for your interest and inquiry vultr.

Titanium 3 gill brake self timing brake in the works.

Thank you once again and we look forward to being a part of your shooting excellence.

Will you folks at Spearhead Machine be making a muzzle brake that fits the new Ruger/Marlin SBL 1895 in 45-70?

A polished stainless version with the 11/16"X24 tpi would be perfect.

I like the Ranger Point brake but would buy Canadian if you guys are going to be designing and manufacturing some.

Thunderhog said:
Will you folks at Spearhead Machine be making a muzzle brake that fits the new Ruger/Marlin SBL 1895 in 45-70?

A polished stainless version with the 11/16"X24 tpi would be perfect.

I like the Ranger Point brake but would buy Canadian if you guys are going to be designing and manufacturing some.
Click to expand...

^^^^ this please.

Spearhead Machine said:
Thank you Thunderhog and Foxer2373

We can definitely look into this, would you guys be ok with a .840 brake outside diameter?

Thank you for the kind suggestions.
Click to expand...

I think the fitted flush look is nicer, in saying that, as long as it looks and works as good as a Ranger Point Brake I would take one.

.762" Outside diameter I believe.

I believe the price point was close to $150.00.

Thanks.

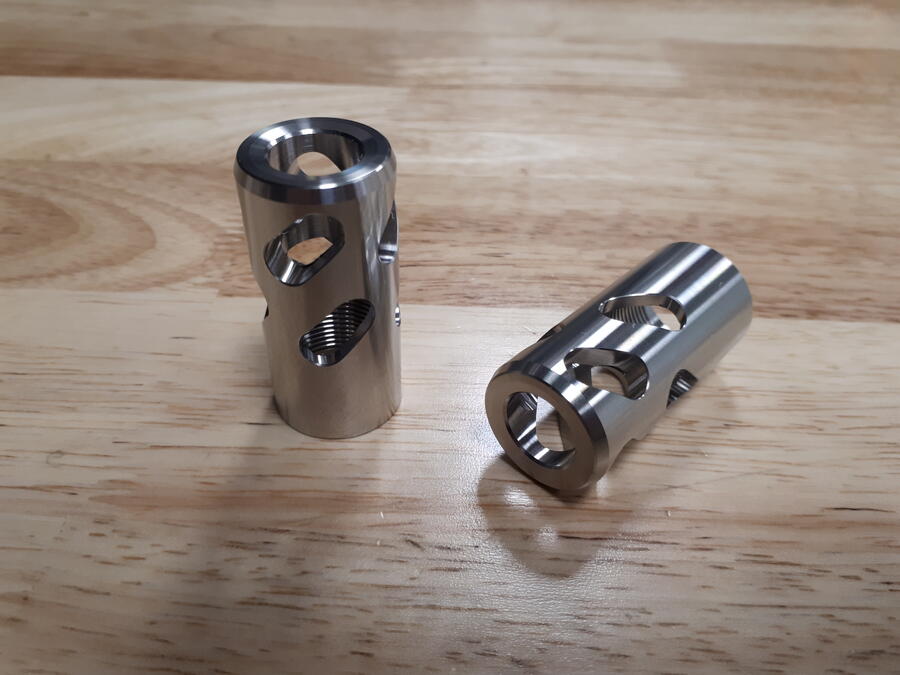

Well, spent the evening making the 45 cal 11/16-24 Muzzle brake. .840 diameter.

Welcomed to take advantage our our iron clad guarantee, should look pretty good close to flush and perform well. Available on Spearhead Machine

Thank you very kindly for your interest and we look forward to being a part of your shooting excellence.


Attachments

  • 20230118_224537.jpg
    61.1 KB · Views: 1,066
Spearhead Machine said:
View attachment 649031

Well, spent the evening making the 45 cal 11/16-24 Muzzle brake. .840 diameter.

Welcomed to take advantage our our iron clad guarantee, should look pretty good close to flush and perform well. Available on Spearhead Machine

Thank you very kindly for your interest and we look forward to being a part of your shooting excellence.
Click to expand...

I see site stock said you have two, so the two in the picture I imagine.

Order placed.

I would have definitely preferred flush as well, but.. I am going to be the Guinea pig here and buy the first one… I’ll put it on on all 3 of the new Ruger marlins and report back.

Or (and excuse me if this is off base, I honestly don’t know) would it be possible to pay a bit extra to have it turned to be exactly flush with the new ruger Marlin trapper in specific? Can measure the barrel of mine if needed.

Yep, the 2 that was in stock are the ones in the pics.

I sincerely appreciate it RyoTHC, please let me know your thoughts. Your satisfaction is my upmost priority, if end up not liking it, please don't hesitate to contact for a refund.

Thank you once again for the opportunity to be a part of your shooting excellence.

-Kevin

Thunderhog said:
I think the fitted flush look is nicer, in saying that, as long as it looks and works as good as a Ranger Point Brake I would take one.

.762" Outside diameter I believe.

I believe the price point was close to $150.00.

Thanks.
Click to expand...


159 CAD after tax and shipping / insurance.
Buy the second one, you know you wanna.

RyoTHC said:
I see site stock said you have two, so the two in the picture I imagine.

Order placed.

I would have definitely preferred flush as well, but.. I am going to be the Guinea pig here and buy the first one… I’ll put it on on all 3 of the new Ruger marlins and report back.

Or (and excuse me if this is off base, I honestly don’t know) would it be possible to pay a bit extra to have it turned to be exactly flush with the new ruger Marlin trapper in specific? Can measure the barrel of mine if needed.
Click to expand...

Please post a pic, seriously considering this but wanna see how it joins up first.

So I received my Spearhead muzzle brake for the Ruger/Marlin 45-70.

The design and quality is excellent. The tool that was included was an awesome surprise and a great added value.

The 2 baffle radial slots are unreal, absolutely gorgeous.

I ordered the .840" size as this was all that was available at the time. I do wish the brake had been chamfered on both ends not just the muzzle side.

A taper on the threaded barrel side to match the outer barrel dimensions would be more aesthetically appealing. In saying this, the 90 degree fit to the barrel is functional.

Thanks Kevin for an awesome brake that in my opinion was very professionally made and designed.

Thunderhog said:
So I received my Spearhead muzzle brake for the Ruger/Marlin 45-70.

The design and quality is excellent. The tool that was included was an awesome surprise and a great added value.

The 2 baffle radial slots are unreal, absolutely gorgeous.

I ordered the .840" size as this was all that was available at the time. I do wish the brake had been chamfered on both ends not just the muzzle side.

A taper on the threaded barrel side to match the outer barrel dimensions would be more aesthetically appealing. In saying this, the 90 degree fit to the barrel is functional.

Thanks Kevin for an awesome brake that in my opinion was very professionally made and designed.
Click to expand...

Hello Thunderhog,

Thank you very kindly for your kind words, we are very grateful for your great feedback.

The edge near the barrel does have a .010 edge break chamfer to preserve shoulder contact up to .840 diameter, I can definitely increase the chamfer larger for the 45-70 brake as it fits on to a more slender diameter, I'm sure a larger chamfer will make it more aesthetically pleasing.

You're very welcome Thunderhog, we sincerely appreciate and value being a part of your shooting excellence.

Cheers
