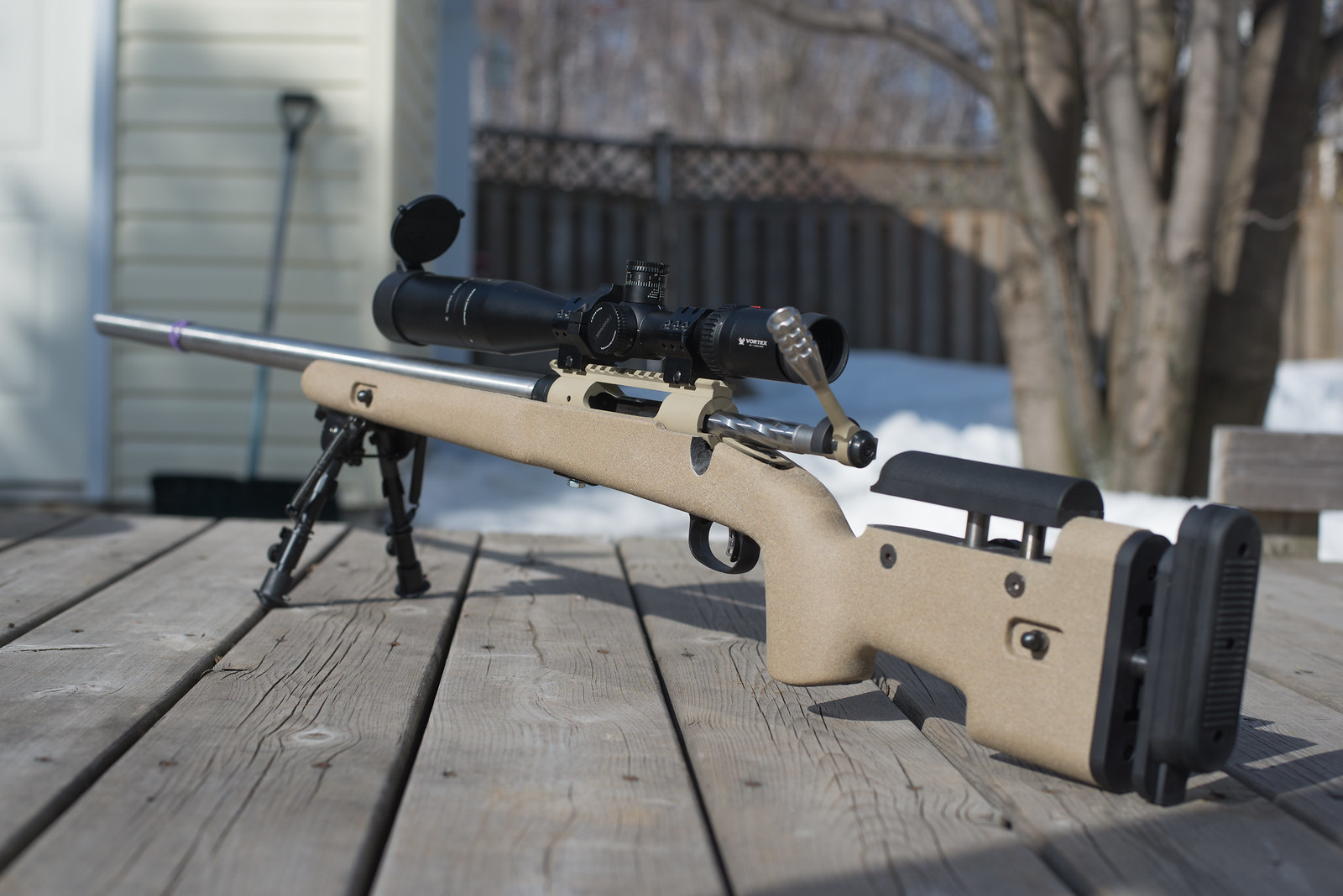

The finished LH Savage build

xURSOx

CGN Regular
Rating - 100%
97   0   0
Location
Sudbury ON
Since the weather is slowly getting better, I decided it was time to finish my savage build that I've been accumulating parts for over the past 6 months. I started out wanting to do a budget build in the $1200 price point. After 6 months of part searching and looking at hundreds of ads on the EE, I have finally built a budget rifle I can call my own.

Specs as Follows with a breakdown underneath.

Savage 11 Hunter LH (Originally 300WSM, now .308)
Savage 30'' target Barrel (From a Savage 12 FT-R)
PTG Flutted Bolt Body
PTG Bolt Head LH .308 Large Shank
PTG Match Recoil Lug
Glades Armory Bolt knob
ATRS 20MOA Base
Choate Tactical Stock



It all started with a Savage 11 Hunter in 300WSM. I bought the rifle new and parted everything out except the action and trigger. I got most of my money back from selling the parts that were being replaced. All in all the action cost me $325 after I sold everything.

Many people know this, however some may not. Savage rifles chambered in a WSM cartridge come with a large shank barrel thread, which allows you to pick off a savage target barrel on the EE for pretty cheap. My barrel is a 30" stainless target barrel in 308. It came off a savage 12 FT-R. This ran me $80 shipped.

Being cambered in 300WSM originally, I needed to change the bolt face to accept the 308 cartridge. A quick call to PTG in the US and I got myself a LH Large Shank bolt head and a flutted bolt body and a few other goodies. This was the longest wait period as it took 9 weeks to be manufactured and shipped. For the Bolt head, Body, Recoil lug, and Barrel nut, along with import / duties the tab came to $310.

Alberta Tactical Rifle supplied me with a beautiful 20MOA base for the Savage SA. It came with mounting hardware and the provided wrench. I believe these run around $140 and is well worth it. I suggest bedding these as no base and action are a perfect fit.

Bolt Handle is a Glades Armory LH stainless hatched. These are extremely high quality and are a two piece design. These run at $60.

It took me a while to find a stock for this build. I was going to wait until I had enough funds for a AX or a AI chassis, however it wouldn't really be a budget build if the stock was worth as much as I originally wanted to spend on the entire rig. A quick look on the EE and I snagged a Choate tactical stock for $300 shipped. Stock was fully adjustable comb, length of pull, and recoil pad height. The stock is a little on the heavier side, but for $300 I couldn't go wrong.

Overall, great rig. Shoots very well too. Im getting 1/2 - 3/4'' moa with 41.2gr of Varget and a 175gr matchking in Hornady Brass. I hope this encourages people to pursue their builds next winter!

Last edited:
I ordered a PTG recoil lug for a large shank about 2 months ago because it's a custom lug, how long did you wait for your lug? Very nice rifle!

Looks great and I bet it shoots great too. I've got a Savage 11 in 300 win mag and I've always thought about doing a build with it. Thanks for sharing!!!

That looks great! I want to convert my lefty 300wm 114 to a 284 some day, If it wasn't so damn nice I would be all over it. happy shooting!

Looks great! Only problem is the bolt handle is on the wrong side! ;)

I must warn you that now that you have built one Savage you will want to buy another and do another build.

VERY nice rifle!

I am in the process of the same...Bought a new unfired TR 308 Barreled action off the EE. 24in bull bbl threaded muzzle. No bottom metal or stock.

I'm lookin' for a stock similar to what you are are using.... I would actually like to go 260 so am thinking of putting the TR 308 barrel on the EE. (new unfired 308 TR 24in heavy barrel muzzle threaded for those lurkin!! lol)
Hopin' to put together a decent tac/varmint/DMR rig for ~$1000....that shoots better than me and is uniquely mine...

So you are def spurning other's interest!! :)

Sounds like an awesome build!.260 is a great option! Its really been catching my eye lately.
My build has gone through some changes since I posted. I've talked to Nick at XLR industries and there is a Element chassis on its way with all the bells and whistles. Ive also upgraded the glass, now running a Vortex RAZOR 5-20 EBR-2C. Also, the barrel is scheduled to be cut and threaded in September by TacOrd, still can't decide on a length though. I'm leaning towards a 22'' and threaded for a brake.
