Rollmarks: Colt Canada - Diemaco Lowers

[fenceline]

I've been doing some research and photo collecting online to see what exactly is out there for rollmarks on Colt Canada built lowers. Turns out there are a fair number of different styles of marking on CC products over the years. I thought it would be cool to post them up in one spot and invite anyone with something different to post them up as well. I'd be especially interested in seeing anything with markings for lowers made for Denmark, the UK, Holland and the Netherlands.

I'll add different lower pics to this first post as different versions pop up.

_____________________________________________________________________________________________________________________
Canadian Armed Forces...

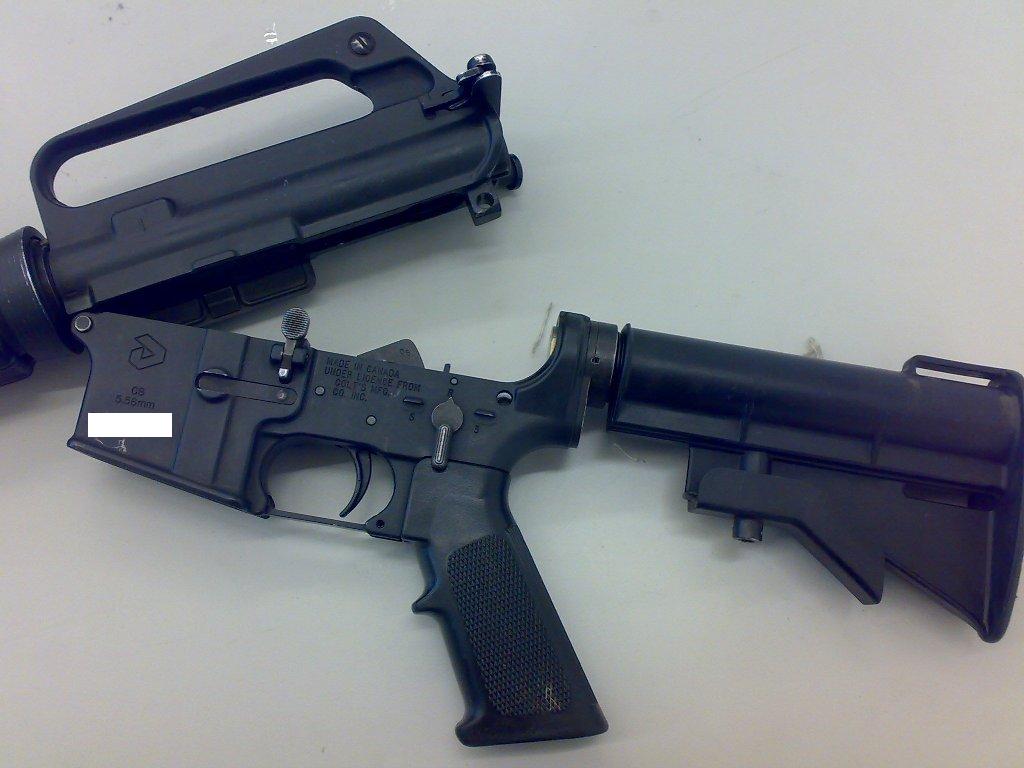

Diemaco C7

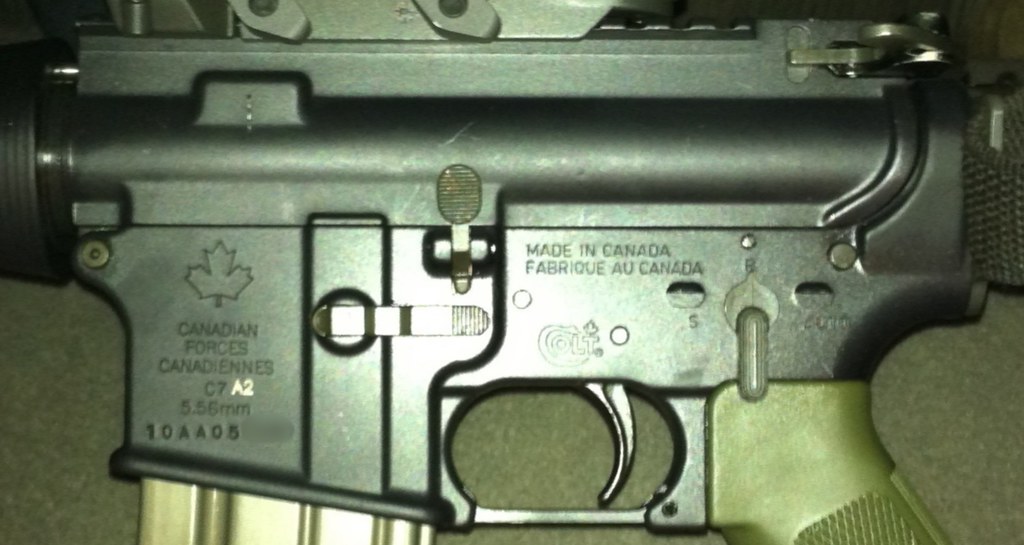

Diemaco C7A2

Colt Canada C7A2
Before anodizing followed by A2 stamping...

After anodizing followed by A2 stamping...

Diemaco C8FTHB

Canadian Civilian Markings...

Diemaco sa15.7

Diemaco sa20

Canadian LE Lowers...

Diemaco C8A2 Semi Auto (Not "Model" Marked)

Colt Defense Contract Builds...
Other than the obvious "Made in Canada" roll mark, all Colt Canada/Diemaco contact Colt Defense guns will have a "C" for the 3rd digit of the serial number.

Colt Defense (6520 Series) AR15a2 Gov't Carbine

Colt Defense (6721 Series) AR15a3 Tactical Carbine

Colt Defense (6920/6921/6933 Series) Law Enforcement Carbine

Colt Defense (6920/6921/6933 Series) M4LE Law Enforcement

Danish Armed Forces...

Diemaco C7A1 HMAK (GV M/95 5.56 mm)

Colt Canada C8 Carbine (K M/96 5.56 mm)

Colt Canada C8IUR Rifle (GV M/10 5.56 mm)

Netherlands Armed Forces...

Diemaco C8

Diemaco C8A1

United Kingdom Armed Forces...



=====================================================
And other various markings, as requested...

Diemaco bolt carrier...

Colt Canada bolt carrier...

US Colt Defense contract upper receiver markings...

Diemaco "MPD" marking on bolt...

The Colt Defense / Diemaco LMG Series... Barrels are Diemaco stamped for the LMG, the LSW had Diemaco lowers.

Colt Model 750 "M16a2" LMG

Colt Defense Model 950 "Colt Automatic Rifle"

Colt Canada LSW / Dutch LOAWNLD

Colt Canada LSW Lower with Devtec marked A2 RIS

LMG / LSW Barrel Roll Mark (Unique Serial Number)



[rocco]

Great info



[Thorvald]

Here is my issue one with the newer Colt Canada roll mark:



[fenceline]

Thanks. Will add that one to the original post.



[WAREWOLF]

Love it



[fenceline]

That is what I have so far. Will continue adding as I find them. Post up euro markings as you find them.

If you find a lower I'll add it to the OP. Once it is their feel free to remove it from the chain lower down to keep the band with low haha. Can't keep this from the 56k folks.

Removed the C8A1, was an airsoft thing.



[j-man]

Great reference. Sticky?



[Jabotinsky]

Don't have a photo but the UK issued ones are marked L119A1. All UK small arms are marked with the prefix L.



[DILLIGAF]



[Glock4ever]

I was handling the RCMP's new patrol carbine last week. It is made by Colt Canada and it is the 15.7 IUR system. As I recall, it had an LMT SOPMOD style stock, Ergo grip and Surefire Flashlight with a Tango Down Mini Foregrip. The receiver was marked (as best as I can remember):

*Canadian Maple Leaf*
RCMP
C8A1
5.56mm
Ser Number: The number ended in R

The rear of the receiver had the standard: "Made in Canada Under License..." with the Diemaco "D"

The only reason I can remember this was that I commented to the constable that I thought it was strange that the RCMP would use a DND term for their carbine "C8A1" but I was told that it was made under the DND contract - I am not too sure about this as I haven't seen the IUR in CAF service but I am not in a High Readiness unit so maybe they are in DND now. The last C8 I handled was the FTHB.



[r34skyline]

I was handling the RCMP's new patrol carbine last week. It is made by Colt Canada and it is the 15.7 IUR system. As I recall, it had an LMT SOPMOD style stock, Ergo grip and Surefire Flashlight with a Tango Down Mini Foregrip. The receiver was marked (as best as I can remember):

*Canadian Maple Leaf*
RCMP
C8A1
5.56mm
Ser Number: The number ended in R

The rear of the receiver had the standard: "Made in Canada Under License..." with the Diemaco "D"

The only reason I can remember this was that I commented to the constable that I thought it was strange that the RCMP would use a DND term for their carbine "C8A1" but I was told that it was made under the DND contract - I am not too sure about this as I haven't seen the IUR in CAF service but I am not in a High Readiness unit so maybe they are in DND now. The last C8 I handled was the FTHB.

There are some pictures of CANSOF guys with IUR guns.



[Rebel Rouser]

I was handling the RCMP's new patrol carbine last week. It is made by Colt Canada and it is the 15.7 IUR system. As I recall, it had an LMT SOPMOD style stock, Ergo grip and Surefire Flashlight with a Tango Down Mini Foregrip. The receiver was marked (as best as I can remember):

*Canadian Maple Leaf*
RCMP
C8A1
5.56mm
Ser Number: The number ended in R

The rear of the receiver had the standard: "Made in Canada Under License..." with the Diemaco "D"

The only reason I can remember this was that I commented to the constable that I thought it was strange that the RCMP would use a DND term for their carbine "C8A1" but I was told that it was made under the DND contract - I am not too sure about this as I haven't seen the IUR in CAF service but I am not in a High Readiness unit so maybe they are in DND now. The last C8 I handled was the FTHB.

They have a 14.5" barrel on them.



[fenceline]

I was handling the RCMP's new patrol carbine last week. It is made by Colt Canada and it is the 15.7 IUR system. As I recall, it had an LMT SOPMOD style stock, Ergo grip and Surefire Flashlight with a Tango Down Mini Foregrip. The receiver was marked (as best as I can remember):

*Canadian Maple Leaf*
RCMP
C8A1
5.56mm
Ser Number: The number ended in R

The rear of the receiver had the standard: "Made in Canada Under License..." with the Diemaco "D"

The only reason I can remember this was that I commented to the constable that I thought it was strange that the RCMP would use a DND term for their carbine "C8A1" but I was told that it was made under the DND contract - I am not too sure about this as I haven't seen the IUR in CAF service but I am not in a High Readiness unit so maybe they are in DND now. The last C8 I handled was the FTHB.

They use the term C8A1 as that is what Colt Canada names the gun. For all those guys that rant "it isn't a C8 unless it is select fire", that is what Colt Canada names their semi auto police patrol rifles.

The semi auto c8 lowers are no different than the semi auto sa15.7 and sa20 lowers. The civi rifles are just laser etched sa15.7 or sa20. Only difference.

Several departments run a C8A2 setup with a 14.5 barrel.

You don't see the RCMP renaming their Ford Crown Vics to Ford "something else"

It is just a model number.



[fenceline]

One added.



[fenceline]

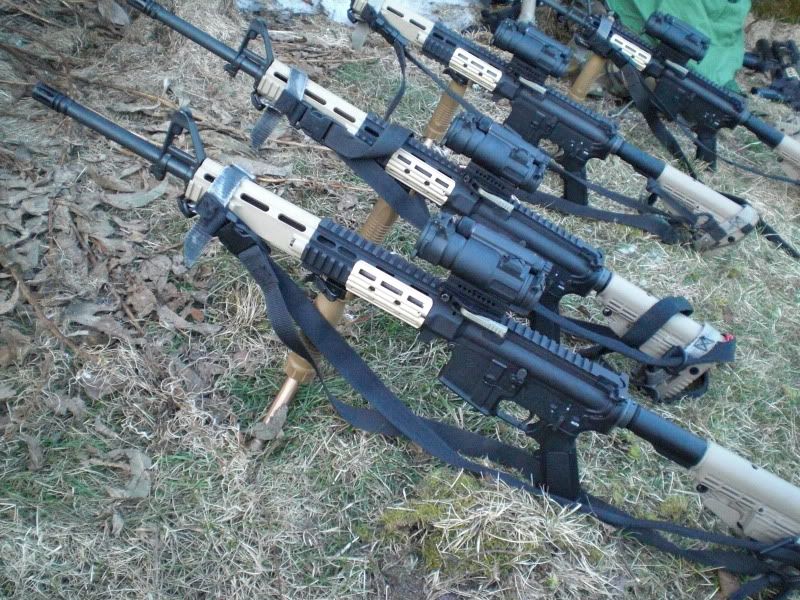

Netherlands C7NLD IUR. See rollmark pics above...



[fenceline]

ugly looking gun, like Vickers sling, other then how they are installed

I fixed the post. I said Dutch, meant Netherlands.

The forward hand guard is removable. So they can barrel swap between the C7 and the C8 barrels. One IUR platform made to work for varying barrel lengths. The CAA furniture isn't that exciting.

But if Colt Canada had a sudden over run of these... I'd be in. For reasons. Haha.



[North60]

Great thread Thanks for sharing the info!



[fenceline]

Netherlands C8 added. At least that is what the web address implies.



[rascal1]

They have a 14.5" barrel on them.

Wrong.



[fenceline]

Wrong.

RCMP went with the 15.7 barrel. Varies from agency to agency.

If anyone has a nice side photo of the RCMP roll marked semi auto lower, I'll add it up top.
