Turbiaux Le Protector

[diopter]

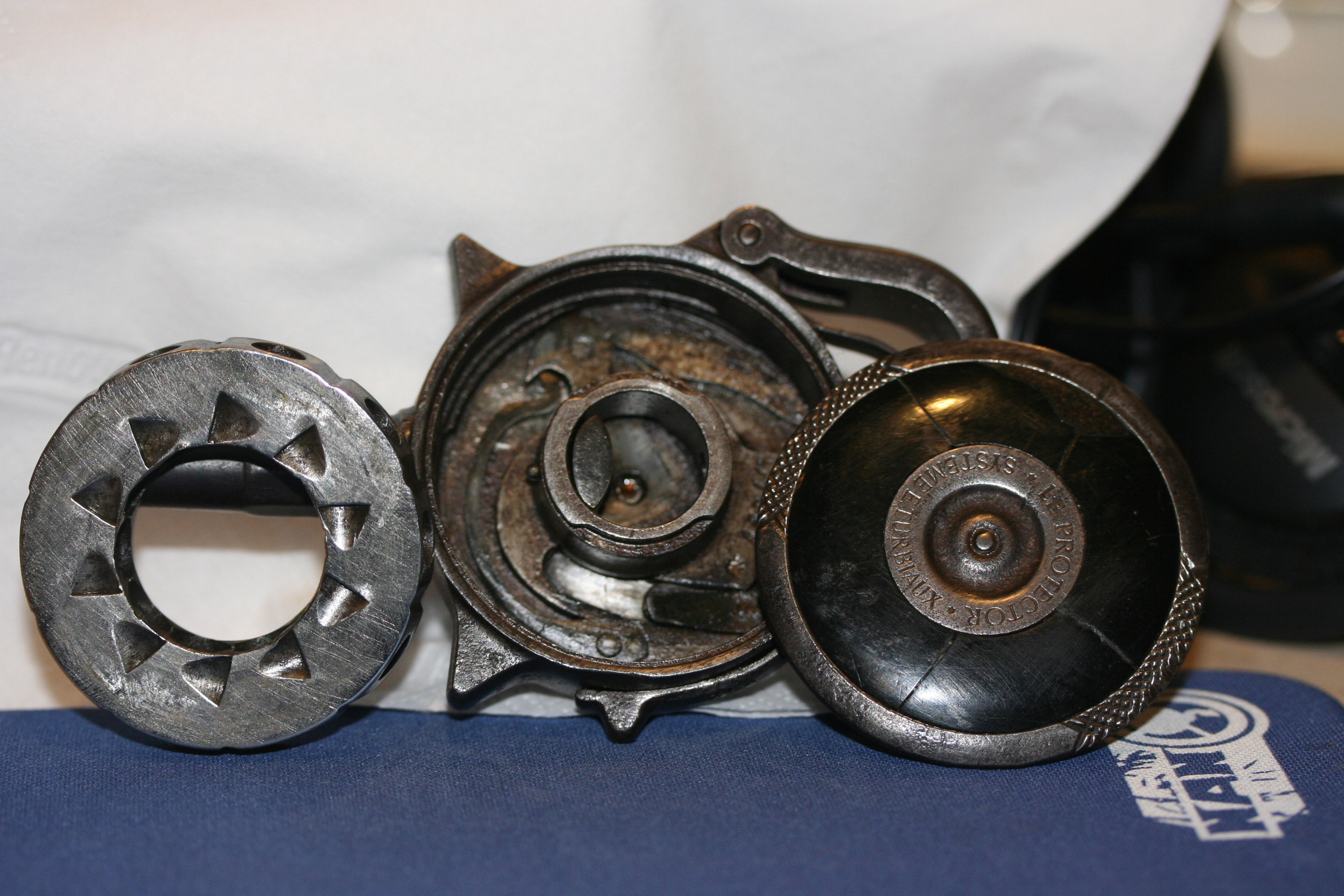

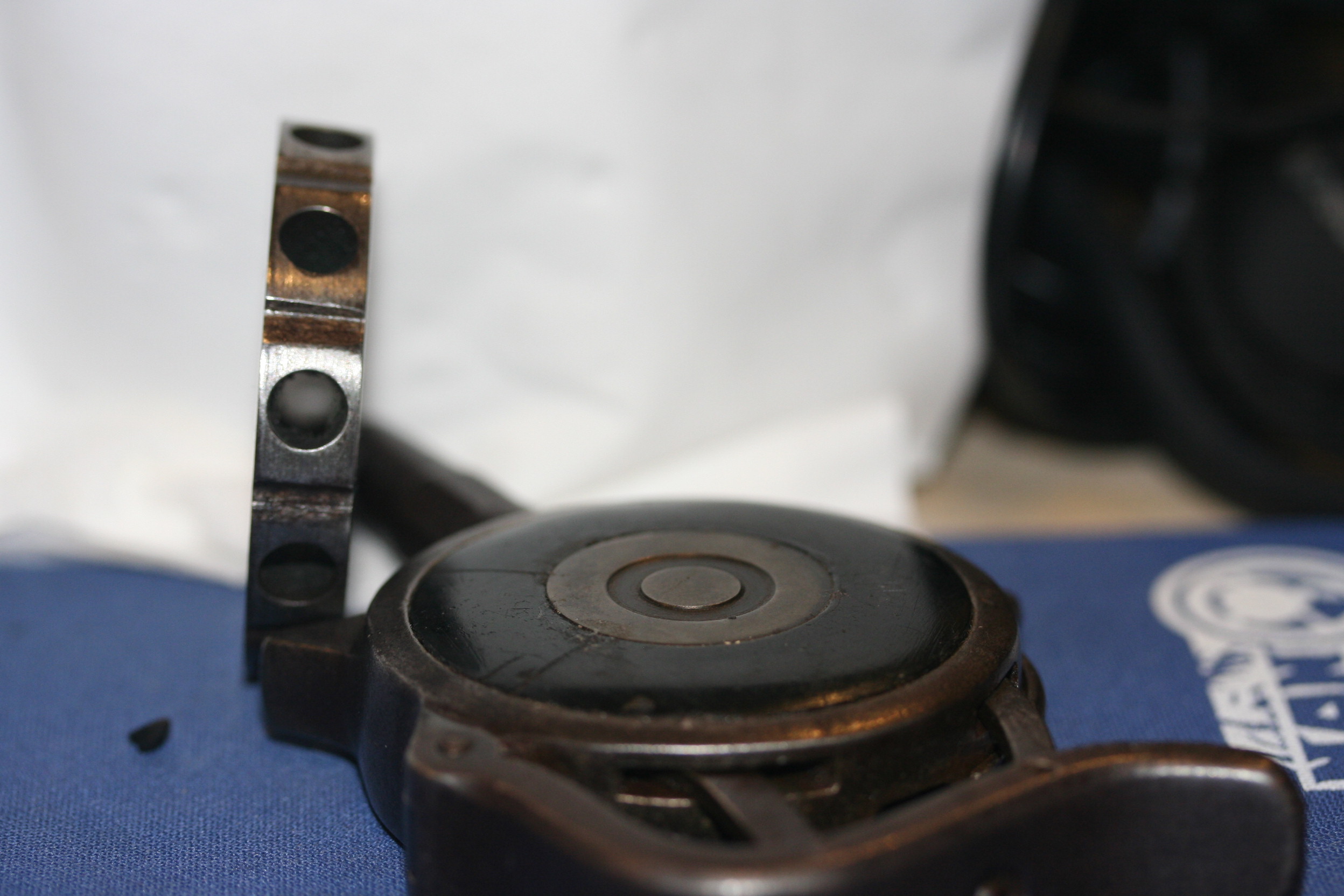

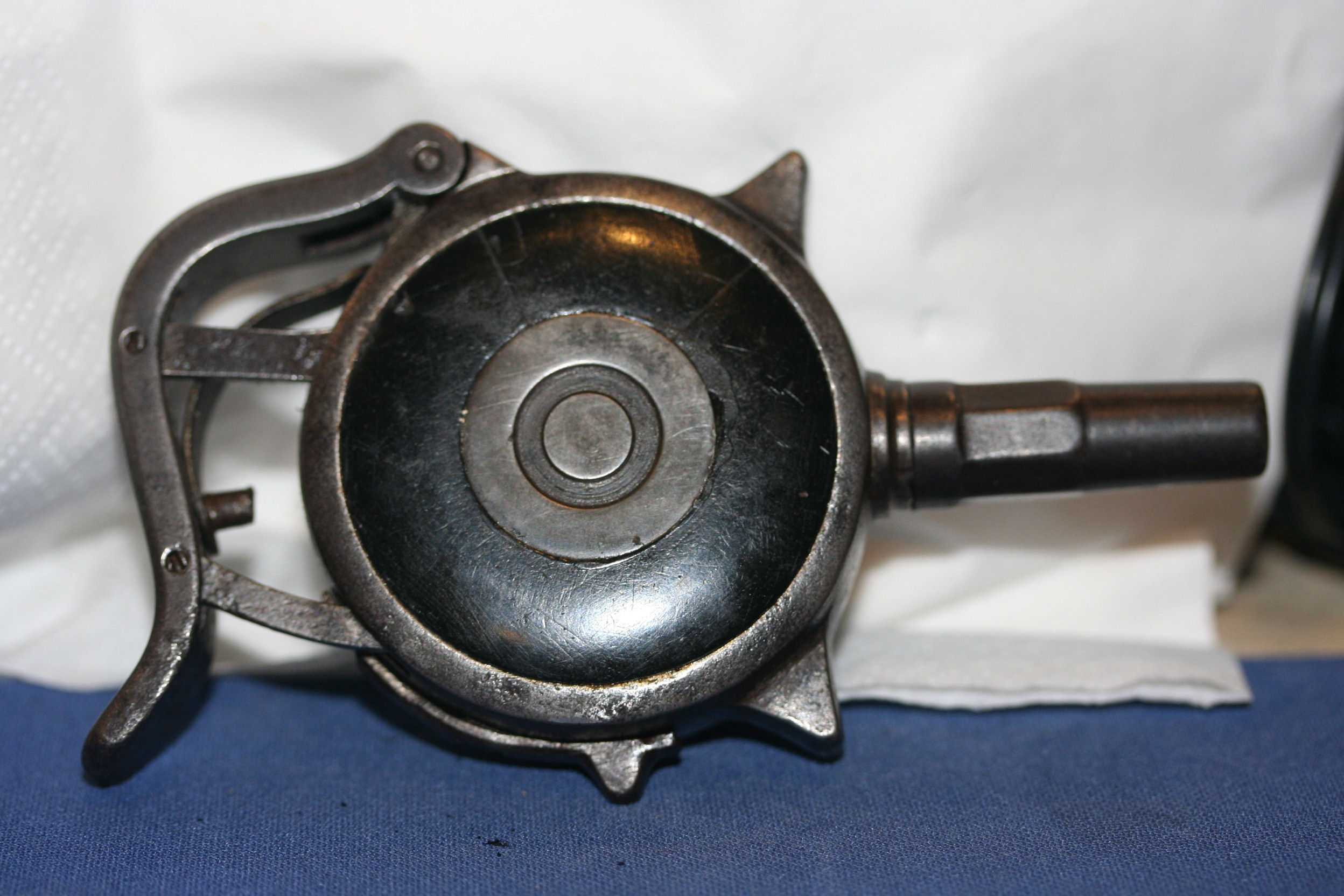

From friend's collection.

https://ibb.co/album/f0hXQa

Samples



[mooncoon]

that is a gun that has always intrigued me. Good photo of the inside although I still am semi puzzled how it actually works. It looks as if the rotary drum that the shells are in push the firing pin / spring back until the notch lets them fall and fire the gun

cheers mooncoon



[diopter]

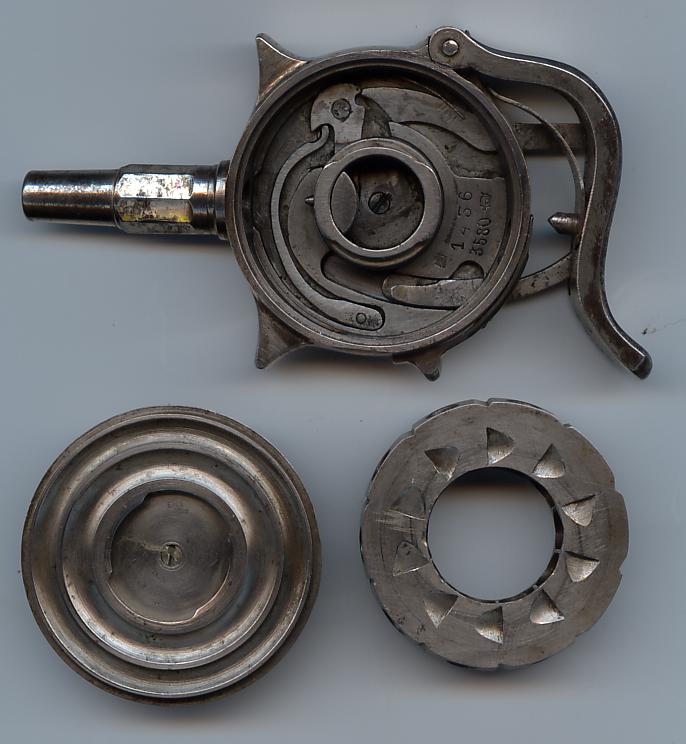

This might help Explain.
http://www.littlegun.info/arme francaise/artisans s z/a turbiaux jacques gb.htm

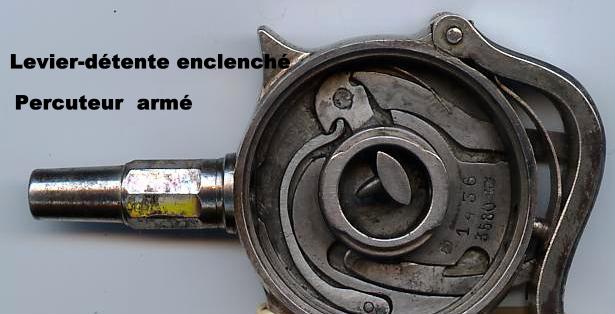

Firing pin cocked:

Firing pin uncocked:



[mooncoon]

thanks; I think I see it now

cheers mooncoon



[diopter]

Animation:



[mooncoon]

Many thanks; it would be a challenge to make one with a 4 1/4" barrel to make it legal enough to register

cheers mooncoon
