What is an "improperly" staked AR bolt carrier?

pavmentsurfer

CGN frequent flyer
Rating - 100%
346   0   0
Location
Minden
I see this "properly staked" designation on all kinds of AR's and AR bolt carriers. Im relatively new to the AR platform and was just curious, what is this referring to. I get that there is a proper way and an improper way to do almost everything, but why is it so necessary to list "properly staked" on EVERY bolt carrier... are there that many out there that aren't?

because a certain manufacturer or 2 who shall not be named had "weak" looking staking on the gas key and many people complained (but none had any function problem as far as I remember)

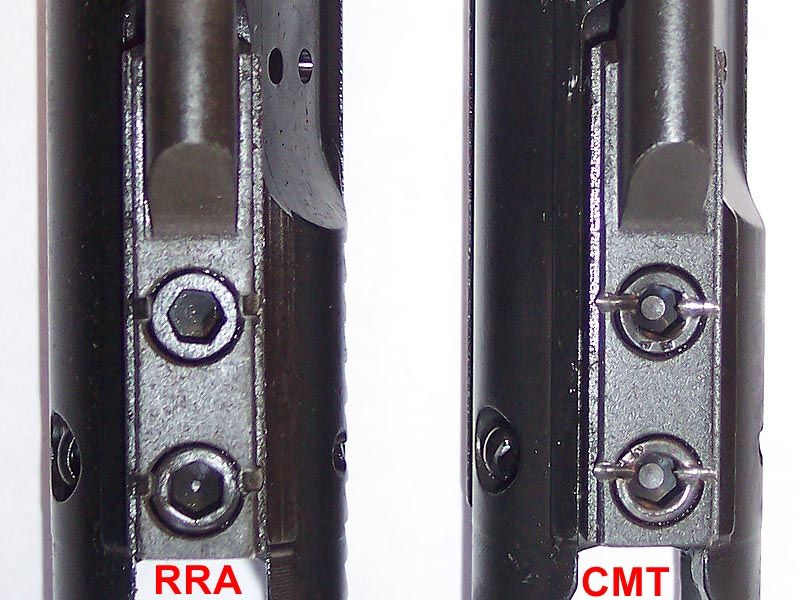

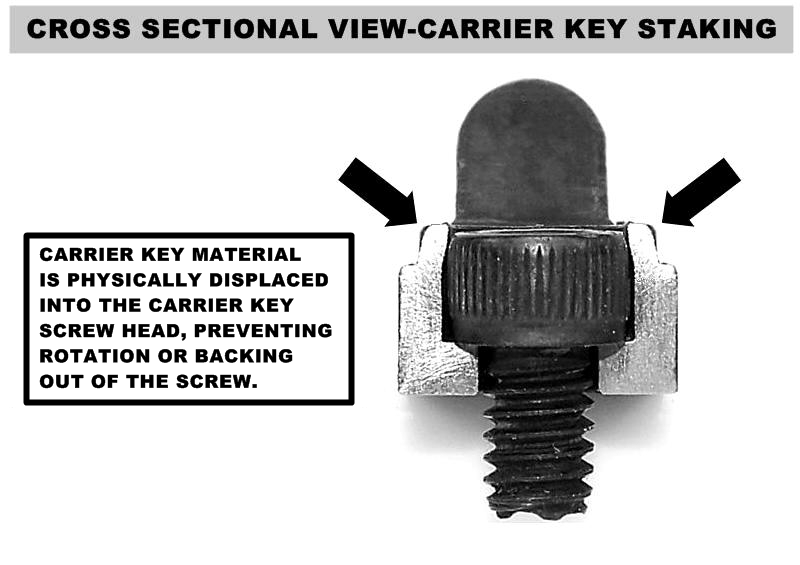

Some are done better than others. here's a few pics of different manufacturers, the process and what most would consider "proper" staking;




I haven't come across ''improperly staked'' gas keys. They usually are or aren't staked. An ''improperly staked'' gas key would be a gas key who's bolts aren't sufficiently staked to permamently fix the bolts in place. Or, the staking could interfere with bolt operation in some way.

Gas keys are staked to prevent the bolts from loosening over time.

because a certain manufacturer or 2 who shall not be named had "weak" looking staking on the gas key and many people complained (but none had any function problem as far as I remember)

IIRC a few people had the gas key come loose and jam the BCG because of it and I think some NEA rifles got out with not just light staking but none at all. I remember there was quite the debate about just how much staking is really necessary with lots of pics from lots of different manufacturers - some were pretty and some were not but as has been said, the important thing is that metal is displaced enough to prevent the bolt from turning under normal conditions.

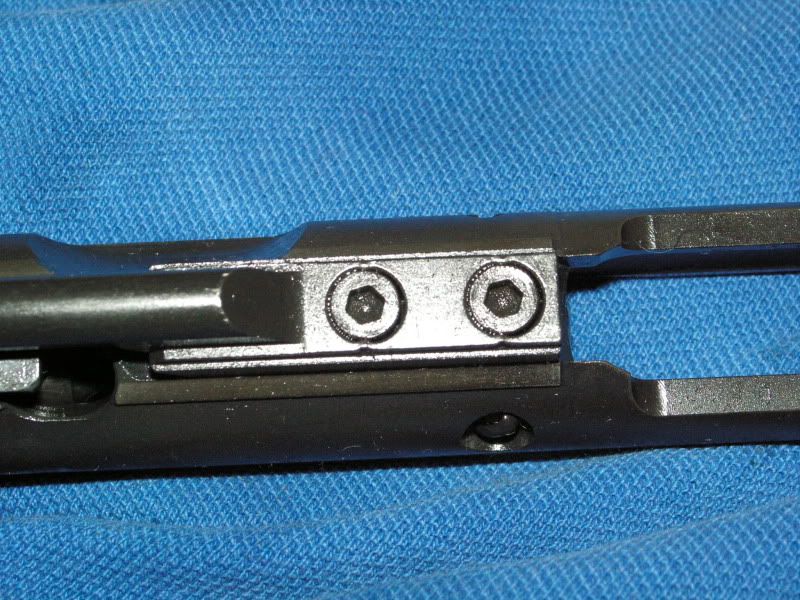

You mean like this?



Or this...


As others have said staking helps prevent the bolts/screws from backing off. If you're really paranoid and want to ensure that the bolts will never loosen, get an unstaked carrier key, install the bolts to the proper torque and mark them on each side with a paint pen. The remove them and grind a small flat on each side of the bolt head where you marked them. Reinstall to the proper torque and then stake. They will be very difficult to remove after that.

So much so that you might have to do some grinding if you want to remove the gas key in the future.

oops, my bad. there were a few cases indeed. such an easy thing to fix, and would be hard to miss in QC inspection
I remember some of them wiggling loose

IIRC a few people had the gas key come loose and jam the BCG because of it and I think some NEA rifles got out with not just light staking but none at all. I remember there was quite the debate about just how much staking is really necessary with lots of pics from lots of different manufacturers - some were pretty and some were not but as has been said, the important thing is that metal is displaced enough to prevent the bolt from turning under normal conditions.

My DPMS BCG wasn't properly staked and the bolts came loose causing feeding issues. Took it to Josef at Dlask and he staked them properly for me. No issues now.

Bushmaster has also had issues with staking their gas keys. Oddly enough, it looks like the high school shop class in Guangzhou has access to a MOACKS tool - no way you'll get a Norc working loose

The mil-spec ( oh the dirty word! ) only specifies the maximum amount of vertical material displacement allowed in the staking. It does not specify how the gas key should be staked. In other words, the mil-spec only cares if the displayed material of the staking will not interfere with the charging handle.

So...as long as the staking does not come off in the 6000 rounds allowed in spec like Mil-C071186 ( M4 spec) and create more malfunctions than allowed, all is good.

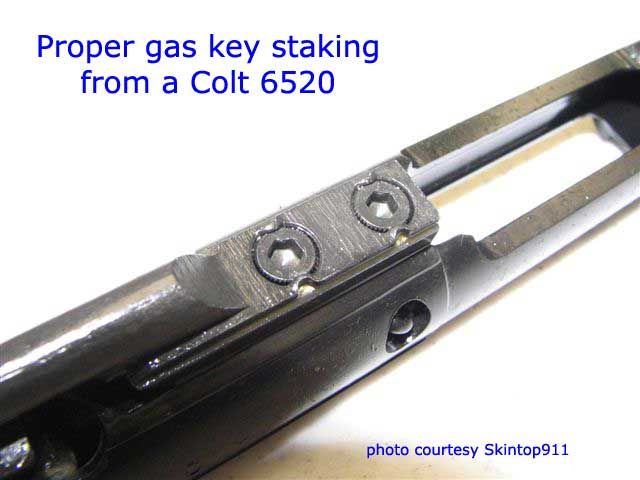

Of course, Colt is a good example because they probably have figured out what has been working well for them in the last 40 years. On the other hand, it also does not mean other staking methods are not proper either.

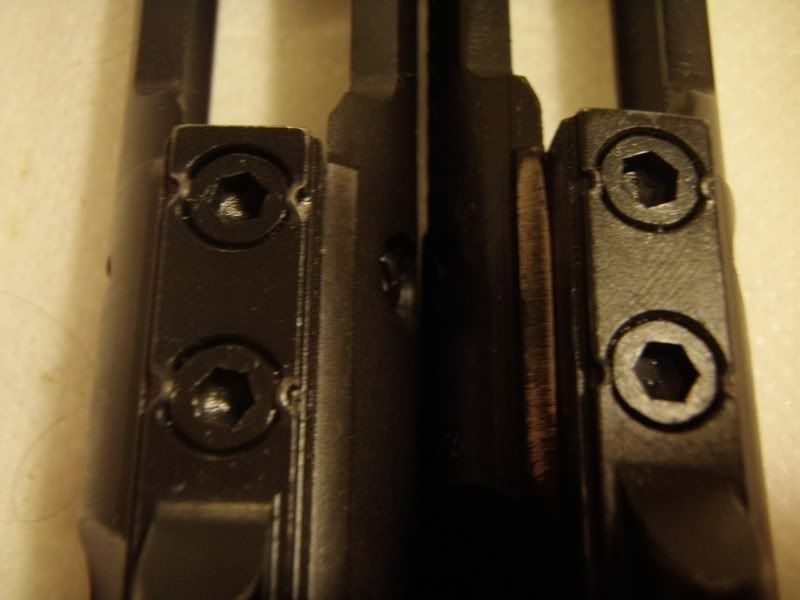

Here's a photo I stole from someone else showing a DD carrier on the left vs a DPMS on the right.

That's exactly how my DPMS looked on the right...maybe even slightly worse. After Josef had a go at it, it looks more like the DD job.
