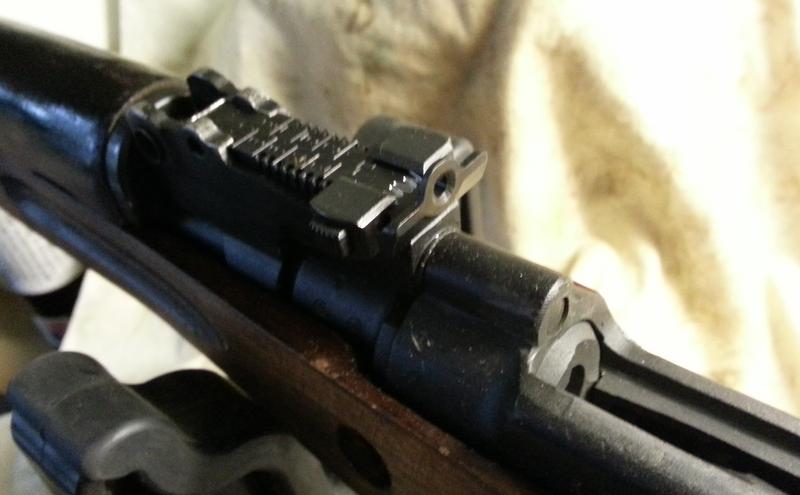

Our latest offering for the SKS is this sweet peep sight that looks just like it rolled off the assembly line with the rifle.

Made of steel and easy to install. Complete instructions supplied.

http://magwedge.com/products/rifle-accessories/raveneye-sks-peep-sight/

Raven7 (2).jpg


Attachments

  • Raven7 (2).jpg
    Raven7 (2).jpg
    37.8 KB · Views: 8,234
johnnybeachboy said:
Could you give us a quick run down on installation process, or PM me.

Thank you
Click to expand...

No problem ... installation is pretty easy, especially if the rear sight has been removed in favour of a rail some time before.

I have a few cell phone pics of some of the installation if folks feel that would be useful.
I was going to wait for some professional pics as I figured the installation was dead easy, but if people feel differently just let me know.


MAGWEDGE RAVENEYE™
SKS Peep Sight


INSTALLATION INSTRUCTIONS
Tools needed:
Screwdrivers, slotted and Robertson; rubber mallet; pliers/vice grips; some kind of tool to hold your rifle or bring a friend.

1. Remove rear sight
The rear sight sits in a track. Occasionally they have a pin running through them which must be removed first.

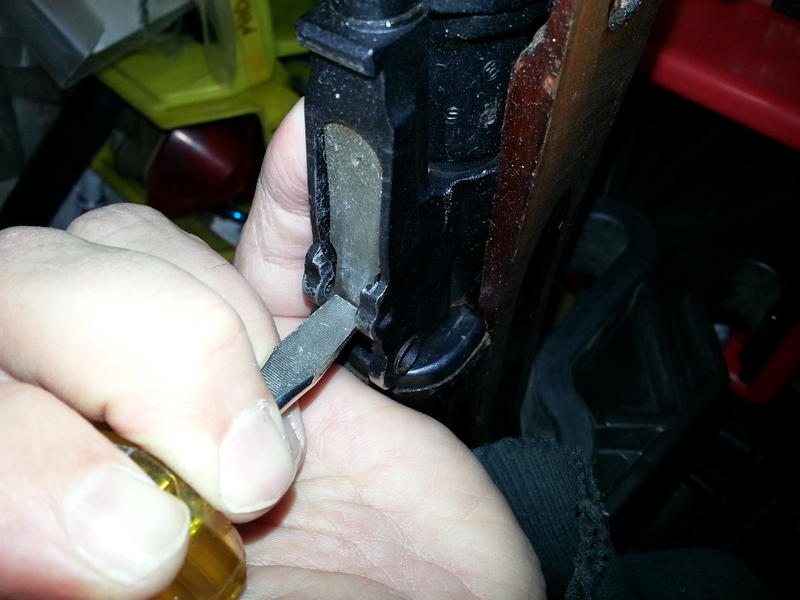

Use a screwdriver to push the rear sight down against the force of the spring located beneath it.
Pull sight to the rear using the pliers/vice grips.
Remove the rear sight but leave the spring in place.

2. Remove the slider hardware from the original rear sight.
Be careful not to let it fall apart as there are springs and small parts within. Maintain a slight pressure on the side tabs of the slider and slide it over the peep sight.

3. Install the peep sight assembly.
Depress the forward end of the sight spring with the Robertson screwdriver. Place the peep sight on the sight base making sure it is aligned properly. Maintain steady pressure on the spring while tapping the back of the peep sight with the mallet. Once the sight contacts the screwdriver, remove the screwdriver and tap the sight home with the mallet.

You are done. The sight may be adjusted for elevation by squeezing the slider and releasing when the desired elevation is reached, just like the original SKS sight. The front sight can also be adjusted if necessary.

See our Facebook page for detailed pictures and information on other MagWedge products.


MAGWEDGE.COM

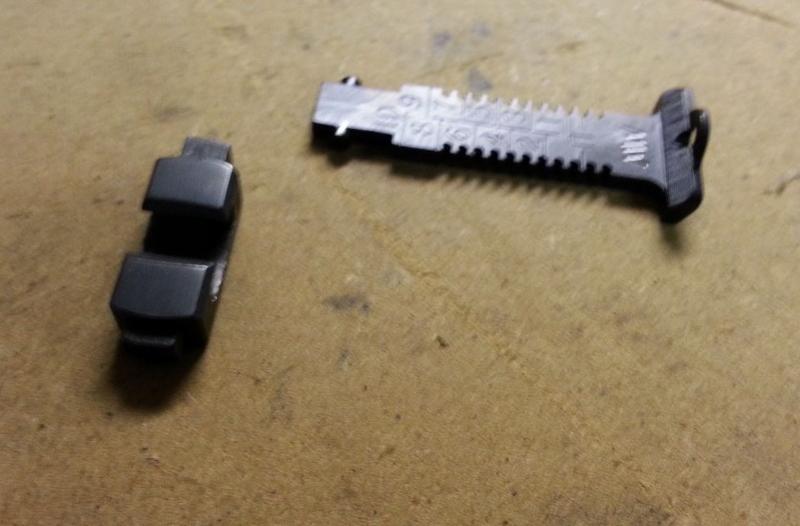

piece on the left is salvaged from your original sight, piece on the right is what you get

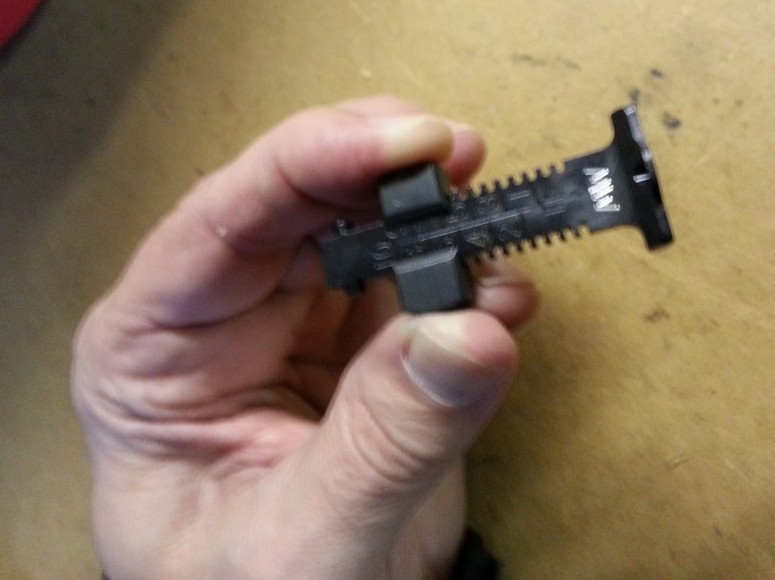

here the two pieces are shown assembled together

again sorry for the poor image quality


Attachments

  • Raven1-e1480536540943.jpg
    40.7 KB · Views: 1,596
  • Raven2-e1480536728368.jpg
    69.1 KB · Views: 1,606
Very nice and great price point! I would definitely get one if I still had a sks, but for now will wait for the vz58 one to come out. (Hopefully)
