My Bench

For many years, I have been using a Dillon Square Deal B attached to a Princess Auto metal table. The table was not very rigid and would flex more than I liked and the press wasn't at the greatest height for ergonomics. My neck and back ached after reloading.

I decided to finally treat myself and my aching back, neck and hands and went all out with a new Dillon 1050 press, primer tube filler and a whack of Inline Fabrication upgrades. Since we now sell all these, it was a great opportunity to test them all out.

Here are some of the details:

Machines:

Two Dillon Square Deal B's:

One with large primer installed and the other with small primer installed. These are installed on 9 5/8" Inline Fabrication Quick Change Mounts with LED lighting systems and dual bin racks. The quick mount lets you add or remove a machine in less than 60 seconds and the mounts a built like TANKS. It greatly spreads the load out on the table and also raises the machine to a more comfortable height. The mounts let you add a variety of accessories including extra bins, die holders etc.

One machine has the Bob Chute installed for the primers. I'll be upgrading the other one shortly.

Dillon 1050 with the following upgrades:

Mr. Bullet Feeder
Bob Chute for the primers into a bucket
Bearing shell plate and low mass detent ball
Inline Fabrication 4" Ultra Mount
LED Lighting

The bench is a Princess Auto steel table that I bolted on two sheets of 1/2" MDF that are glued together. This eliminated the flex in the table. The back of the table has a peg board which is great for holding wrenches and other accessories. I attached two power bars to the bench as well as fluorescent lighting (you can never have too much light). I painted the wood white to get the maximum amount of light.

This is the shell plate bearing and low mass detent ball. These help to eliminate powder spilling when you turn the shell plate with cases filled near capacity. You can also see the Inline Fabrication LED lighting system installed over the bullet seating die. This allows you to see how much powder is in the case which is fantastic for safety.


Here is the Dillon 1050 case feeder with the Mr. Bullet Feeder control mounted to the 1050. The Mr. Bullet feeder is an amazing feat of engineering and fun to watch.


Here is the Dillon low primer alarm along with a micro switch controlled round counter.


Here is the Inline Fabrication case feeder mirror. This allows you to see what is happening inside the case feeder without standing on a ladder. It is on a fully adjustable arm.


Here are the Inline Fabrication Bin Barriers. They greatly add to the capacity of the bins preventing rounds from falling out the front.


Here is the Dillon Primer Filler and the Inline Fabrication primer tube holders. The primer filler works great and saves all the hunting and pecking we usually have to do to fill our primer tubes.


Here is the completed bench. That is 3 machines on a 4x2 table


We sell the Inline Fabrication and Dillon line so check out our catalog for more details!


Attachments

  • IMG_3547.jpg
    40.8 KB · Views: 1,658
  • IMG_3544.JPG
    75.3 KB · Views: 1,647
  • IMG_3545.JPG
    75.7 KB · Views: 1,643
  • IMG_3546.jpg
    39.5 KB · Views: 1,642
  • IMG_3555.JPG
    80.8 KB · Views: 1,632
  • IMG_3548.jpg
    42.9 KB · Views: 1,633
  • IMG_3556.JPG
    90.7 KB · Views: 1,634
I started reloading in 1985 if I recall. I've always done it the slow way: single stage press, weighing each load. I'm not saying it's the best way, just the way I got started and have continued to this day. I've never needed a high volume set up. Consequently, my benches have always been spartan and compact.

I built this one last winter. I typically am only loading for 2, perhaps 3 max, cartridges at any point in time. My bench hosts my RCBS Partner press and Lyman scale and trimmer that I bought back when I started.

y3mWCpa4U3eOqbClo3dzB6yomlWnfa6ycENaxT8fgOQFOH9SG3TORBELVWTlw_WzKeKjrvxH4jEZdoWgAMLYX6f58jfVrlJ7QnFoGS-kVCMfXjG2cpHHuhDzGAx-MEwEq2AmIJCGVHlBhlyx3qjvWS9S70-FL2t_GPuBUE8oRaCEEo

y3m4mtKm9StjrqO2vq_pPH-rM5nLnpCP6J43n-9sJApe0d3_ozXyfJUQK_9-YcIVkJueQmCJsBPrW9ZAlBrMQwZbr6c8rUnHSnrSwtjFCvcNXsQm3VxN2oJYq6dSLtM9u-shh6Ud0_mSatjUK2LbsSnSa17HlBPk2uMosNe0Oqby2o

Last edited:
I started reloading in 1985 if I recall. I've always done it the slow way: single stage press, weighing each load. I'm not saying it's the best way, just the way I got started and have continued to this day. I've never needed a high volume set up. Consequently, my benches have always been spartan and compact.

I built this one last winter. I typically am only loading for 2, perhaps 3 max, cartridges at any point in time. My bench hosts my RCBS Partner press and Lyman scale and trimmer that I bought back when I started.

I have always favoured the KISS idea but somehow always ended up in over my head :(

About the same size as my reloading "bench" :)

My set up is pretty hurtin but I live in a tiny Burnaby apartment with my wife so I all I got is a tiny corner of the apartment to do it. I don't have a man cave I just got a man corner. I bolted the end table I found in the streets of Burnaby to the wall and makes a pretty solid platform for the press. I was on my way to value village to pick something up but ended up seeing this table by a dumpster.


My set up is pretty hurtin but I live in a tiny Burnaby apartment with my wife so I all I got is a tiny corner of the apartment to do it. I don't have a man cave I just got a man corner. I bolted the end table I found in the streets of Burnaby to the wall and makes a pretty solid platform for the press. I was on my way to value village to pick something up but ended up seeing this table by a dumpster.


Dude!

No offense intended here, a genuine question though (I do understand that space limitations suck, don't get me wrong).... how do you use that?!

Like, where do you put your reloading trays, where do you mount your powder measure when you fill the cases (or measure into a tray to weigh the charges), where does everything go? If it's bolted to the wall, that answers my initial question of how does it not move, so that's good lol.

But do you pull up a table of some sort next to it?

Big props for making it work with no space, big time. I couldn't imagine it, but pretty cool you're making it work!

Dude!

No offense intended here, a genuine question though (I do understand that space limitations suck, don't get me wrong).... how do you use that?!

Like, where do you put your reloading trays, where do you mount your powder measure when you fill the cases (or measure into a tray to weigh the charges), where does everything go? If it's bolted to the wall, that answers my initial question of how does it not move, so that's good lol.

But do you pull up a table of some sort next to it?

Big props for making it work with no space, big time. I couldn't imagine it, but pretty cool you're making it work!

I am equally impressed you can make that work. Mine is 8' long and i wish it was biggger.

My family and I finished developing our basement, bulit myself a 8x10 room for all my reloading and hunting gear. The door had spring hinges and a electronic keypad door handle so it will shut and lock itself after leaving the room. It's not the biggest area but it suits my needs reall well!

Kevin


I just added a 550B to start playing with reloading 45acp, 40S&W and 44. It's real simple to change calibers and I'm only doing up low volumes in those calibers. The XL650 is setup just for 9mm and I can crank out high volumes of that :)

View attachment 64189

I just built myself two more 2x4 benches today (to give 2x8 feet) more space to work.

That is going to give me a lot more space. I have a bench for my presses, one for various operations, but I just needed much more space for all tools. (lead melter, hotplate, fume hood, drill press, grinder... etc).
Plus, I need space to clean my rifles and there is none left.

There won't be any place to walk in this garage soon :p

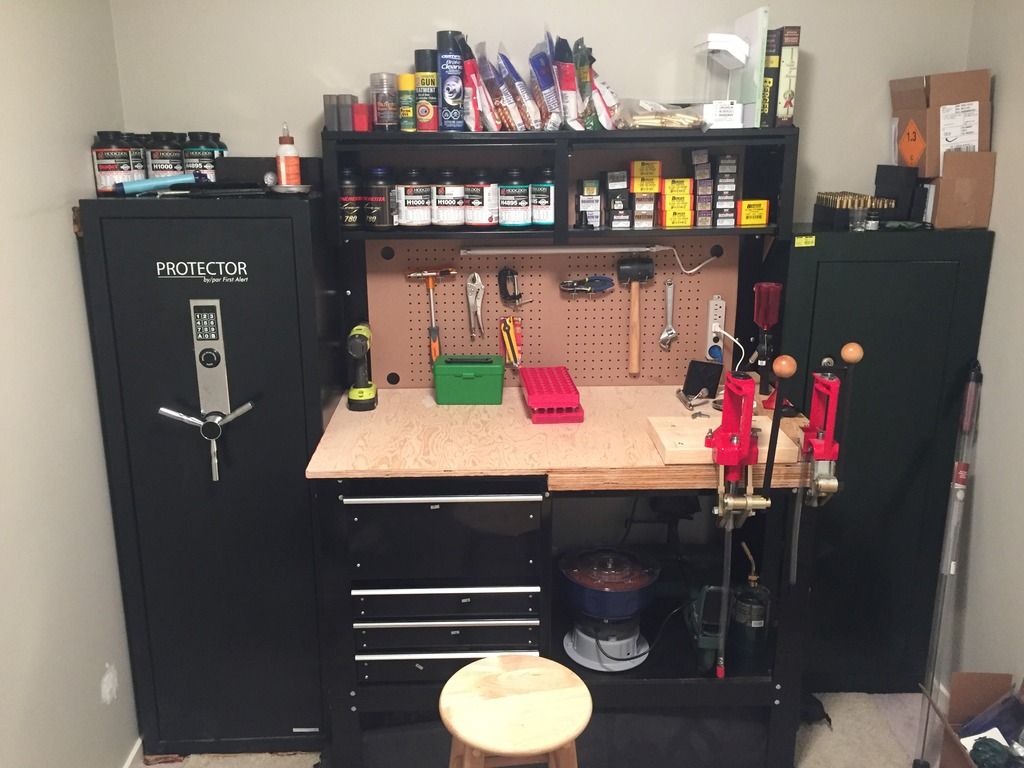

The good thing about being an empty nester is that I can take over one of my kids' rooms. I turned it into a reloading and gun cleaning/maintenance room. The bottom line is space and now I have lots of it. And my wife is happy that I no longer share her laundry room. The bench is only a third of my gun room. What you don't see is the gun working bench to the left out of the picture. And behind where the picture was taken, is a cabinet that has a large locking drawer and a two shelf storage area below it. On top of this cabinet I have my wet and dry tumblers.

The gun and ammo safes are in another room. But wow, is it ever great to have space. (And a happy wife.)

What a great set up!!!!!!

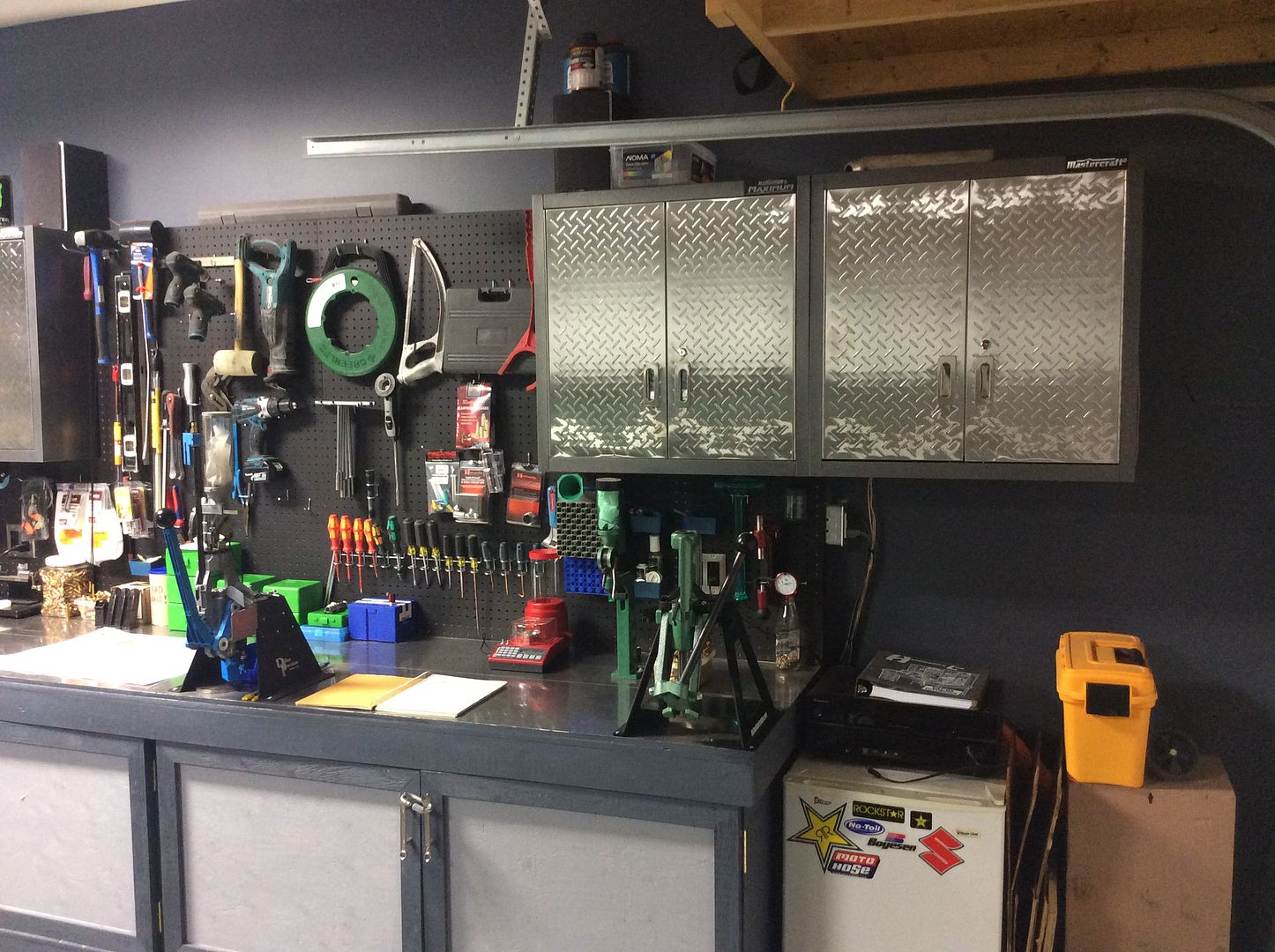

Just an update to the reloading area. Added another cabinet above the bench and finally got an inline fabrication mount for the rcbs. I went for the quick change top so I can add a 550b later and utilize the same mount. I am loving it.

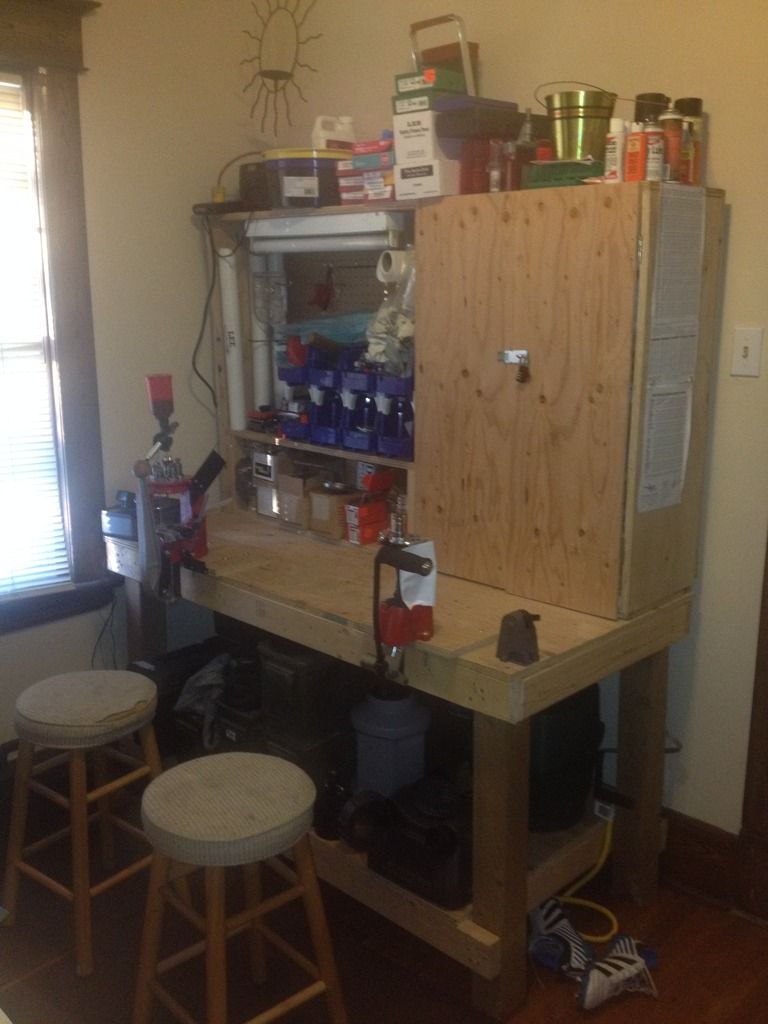

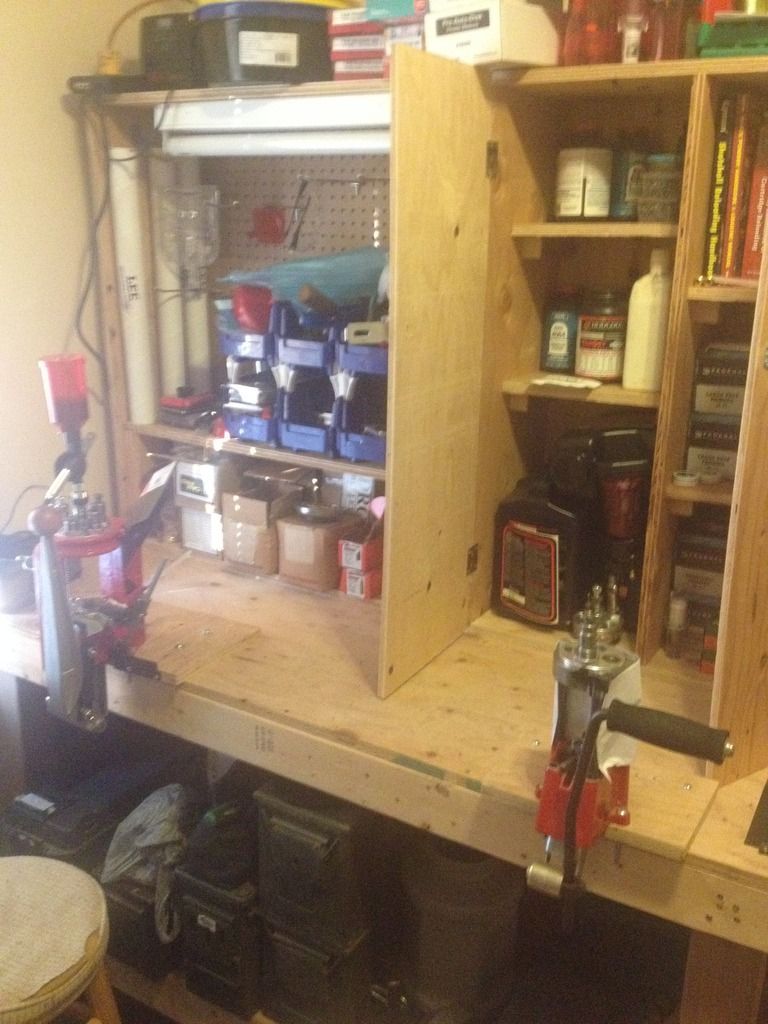

This is what 3 sheets of 3/4 ply, 6 2x4, 2 4x4's, peg board, and some screws turned into in 4 hours. Took longer to mount the presses and move all the components than it did to build.

Last edited:
