What target 22 ?

You need to figure what you want first. Everybody I shoot with minus the ones that shoot their Ruger RPR, are all single shot Anschutz, prices range from 600 to 2500$. Buying in parts can be more than buying it complete. You only kinda save if buying used parts. Buying in parts means you pay taxes and shipping for each part. Then you would need a gunsmith to assemble it, bed it etc. You want ultimate accuracy, you cannot just slap any bolt in an action and expect it to work, or barrel. Things are normally fitted for each gun, same with stocks. Unlike airguns where you can interchange parts between guns without any ill effect.

Buying parts won't work unless you are a gunsmith or at the very least the rifle takes prefit barrels. Only ones worth mentioning for BR in that case might be some of 700 footprint actions, but those are really built for PRS.

Are you actually looking to compete or just shoot small groups for fun?

You want to make sure it has a 5018, 5020 or 5022 trigger.
Anything without one will leave you disappointed compared to your air rifles.

You want to make sure it has a 5018, 5020 or 5022 trigger.
Anything without one will leave you disappointed compared to your air rifles.

The OEM FX Impact trigger was pretty stiff, I toke it apart and polished to mirror finish all mating surfaces. Ordered a "load adjustable ball plunger screw" and even that one I toke it apart and polished inside a hole so the spring is not rubbing. Also every spring in that gun I polished all contact surfaces. Lubed the trigger parts with a french kiss of moly grease everything that touches or moving/sliding. Now as is you would not recognize.
I am :) very anal with mechanics, kind a german engineering.

Btw, a long back I replaced my TP competition crossbow trigger with Triggertech, about a time they just started expanding the company in Scarborough I visited them and chose right there on the spot one that I could fit in the pocket.

Ah sorry, I didn't said anywhere that I am expecting a best gun for $1-1.5K or I need it asap :)
I said if I don't have a money for a full gun at once I would buy it in parts how the $ arriving I would collect all the parts maybe in couple months for next season. (in brackets I just assume I will collect a high performer piece by piece). Also following that logic why me to buy a furniture stock if I would most likely throw it away because all will be clamped on my existing rail.
I know that as well that there is a huge difference between how a starter $1K and $3K guns comparing look or performanse, but I would expect a less difference between a high priced $5K and $7K. Like with everything, be that a bicycle or cars or surround speakers or cameras ... name it.
I just don't know firearms and I don't want to pay like a moron the top dollars if a 75% is way better performer.

Back to buying the 22 and collecting it in parts... Would that be a vise decision?

Please don't take what I write below (or what I wrote previously) as being pejorative, argumentative, or belligerent. It isn't and hasn't been intended that way.
_________________________

What you said above was in reply to something I wrote. It's unclear why you think I said anything about expecting a best gun for $1000 to $1500 or that your needed it sooner rather than later.

By way of explanation, for anyone unfamiliar with FX PCP rifles, at the Canadian dealer website they start at about $1300 and most are in the $2000 - $3000 plus range. That's what I meant when I suggested that the OP should "Be prepared to spend "FX" money on a good quality rimfire rifle for the best chance to achieve your performance goals."

In short, as a general guide for readers who may not be versed in the costs of .22LR, the performance goals you outlined are not going to be realistically achievable with less than FX money.

It's also unclear what you mean when you say that you may collect a high performer piece-by-piece. It's possible to get a Remington 700-clone barreled action such as a Vudoo or RimX and then select a stock for it. You might even get only the action and order a barrel of your choice from a Canadian supplier or import it from the U.S. Once you decide on a 700 trigger and stock, you'd be ready to go. At the same time, however, it's worth remembering that, while installing a trigger or a stock is relatively straightforward, as a previous poster has noted, installing a barrel may not be a DIY job for the typical shooter. In other words, the non-gunsmith shooter won't be taking a barrel from here, an action from there, etc. and putting them together.

In addition, it's not clear what you're saying about stocks. I had previously suggested a stock rather than a chassis for shooting from a rest.

You write above: "Also following that logic why me to buy a furniture stock if I would most likely throw it away because all will be clamped on my existing rail."

Your notion appears to be that you'd have to get rid of any stock because you intend to clamp your rifle (or barreled action?) onto your rest.

This would seem to be confirmed by what you wrote above about performance goals

Now, talking MOA or subMOA in a calm day and absolutely no wind or other elements to mess with and the gun is clamped on a one-piece-rest, shooting 50-60 shots strings.

This what performance I am expecting from a 22 rimfire as well, a consistent sub MOA capable barrel at 100 meters. If the barrel is capable of doing it I will find the ammunition what that barrel likes the most.

I and perhaps other readers may have assumed that the use of the word "clamped" was poor word choice. Perhaps it was instead the product of what you say in your first post and elsewhere about being "uneducated" and "illiterate" about.22LR and powderburning firearms in general. That's okay. Everyone is -- at least for some time.

It appears you imagine that .22LR shooters usually clamp their rifles in a rest. They don't. Benchrest shooters typically use a front rest and rear bag (or one-piece rest). The rifle is a barreled action together with a stock (often a BR-specific stock). Only the barreled action is "clamped" to the stock by means of the action screws. The rifle is never clamped to the rest.

Shooters may also use a bipod, especially in shooting PRS-type activities. A chassis may often be more suitable for use with a bipod in the variety of shooting positions that may occur in events.

Of course, it may in fact be your intention to have a one-piece rest and "clamp" or fix your rifle (or barreled action) to it. If it is, good luck to you. I'm sure readers will be interested to learn of your results.

For readers unfamiliar with "clamping" a rifle or barreled action, it is similar to the way rifle makers and ammo manufacturers test their products. They literally have a vise or fixture into which a barreled action (or a rifle with it's stock) is clamped. They are shot in a windless testing tunnel. This is done to test either the rifle or the ammo with the shooter taken out of the equation.

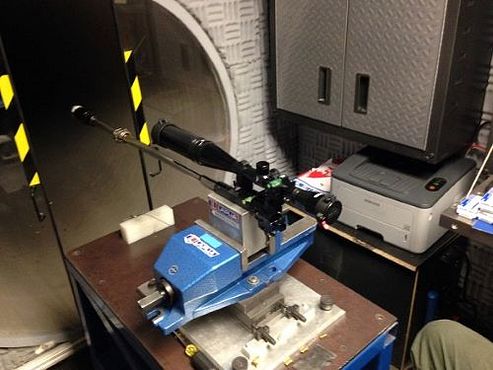

Below is an example from the Lapua testing facility in Mesa, Arizona.


Thanks for this, I started leaning towards Anschutz. Now just to find one with flat bottom rear stock, and monitor the prices.

You'll find Anschutz model numbers are confusing. I'm still trying to figure the models, trigger etc. Glenn would know more. I only started to shoot precsion 22 really this year.

I shoot limited F class, we to keep it fair limit the price of ammo to about 10$. We use bipod of all style and rear bags. I just used what I had which was a versa pod. Some have home made ones that are super stable, some 500$.

If you are planning on just doing purely BR, you dont need a magazine, single shot can be shot fast, but limits you if you want to shoot PRS etc. But then again, most of us have more than one 22.. But most BR guys free recoil their guns, ie letting it recoil on it own, which mean it slides on the rest.

Accuracy is limited on your shooting bench. I know the club I shoot F class. I shoot slightly poorly due to the benches shake a bit, as we lay prone off them. Vs my club that has concrete benches, and more solid prone pads.

Last edited:
Lots of options I have a number of good 22s but found a Anschutz 54 in ee and it shoots very well. Ammo is my limiting factor (along with ability). Best of luck. (I paid a grand for the 54)

...........

Sorry for all misunderstandings, I want to apologize. I came here with my post for education, whatever I sad about a 22 rifle and firearms overall is my poor speculation only. I don't know nothing how the barrel+action+trigger can be configured for best performance, I am only seeing online pictures, 22's or others have done it.
Please don't take offence what I said about prices, it is all in my head speculating.
PCP airguns are a real money pit. What I have on my own is about tip of the hill, but still I invested extreme hours to modify to my preferences and I am my own mechanic. I have two guns, the FX Impact in .25 and a Leshiy2 in .22 but also have several barrel configuration I can swap around. These two guns today stand North of $10K after my modifications and two years of tinkering.
I invested big $ to make the competition equipment and ended up not travelling at all in past 2-3 years...kind of disappointing to myself at first.
I tried bipods, I don't like them and don't like the rear bags. I made one setup with heavy weight tabletop tripods and made the onepiece rest. I am "clamping" but that means it is not a hard clamp but a sliding clamp, it can slide forward-rearward pushing the gun with a finger tip only, and I can adjust the friction in the arca clamp. So basically my guns "float" in the clamp. With a zoom in you can see the antifriction tape on sliding surfaces.

View attachment 626673 View attachment 626675

You'll find Anschutz model numbers are confusing. I'm still trying to figure the models, trigger etc....

Yes, the Anschutz is confusing to me, I have seen with rear stock flat bottom pictures only on the net, I need more reading how to get there.
My gunclub is 15 minutes from my house and we have there many ranges, but usually shooting my airguns at the #5 22LR silhouettes 20-40-60-77-100 M range, there is a most quiet and never lineups. But right beside the #4 is the 200-300 distance, those guys are f*** loud :). #3 is also a 100 meter range but mostly big bores.
F class we have an army range about 2 hours drive away, but the schedules are tight to get into.

Yeah 22LR you cannot just swap parts around that easy. Best way if you want to learn about rimfires is forget about everything else, or try and compare airguns or rimfires.You dont need to deal with headspacing with airguns, you do with 22LR, you dont need to deal with carbon and hot gases like a airgun. Also there is gonna be bit more recoil.

Sounds like you just want to shoot the tightest groups and no compete. I'm sure you can find adapters for a tapered traditional stock for your rest and a adapter for the UIT rail most anschutz have in the forearm.

3/4" plywood bench top will be your weak link in accuracy.

bolt that rail to the bottom of any rifle stock... square off the buttstock using any material you have handy... done.

Given how you want to set things up, don't over complicated your first rifle.

If you are handy with tools, making a stock is really easy.

Jerry

...3/4" plywood bench top will be your weak link in accuracy.

Yeah, I noticed when shooting off the tripod that plywood bows about 1.5-2 MOA at 50. there is a steel L shape below but some of the benches sandwiched two plywood sheets those the worst. The long one-piece rest is less vulnerable but still showing at 100 my elbow pressure.

There are a few options that are more or less "off-the-shelf" designs for .22LR benchrest shooting. These include the Vudoo V22S, a newish single shot version of the Vudoo repeater that's popular among PRS shooters. The availability of these depends on import timelines or what may be currently in stock at Vudoo dealers.

Another option is an Anschutz match barreled action coupled with an Anschutz BR 50 stock. The stock (two configurations available, one designed for free recoil, the other not) can take a brand new single shot barreled action or an older Match 54 single shot.

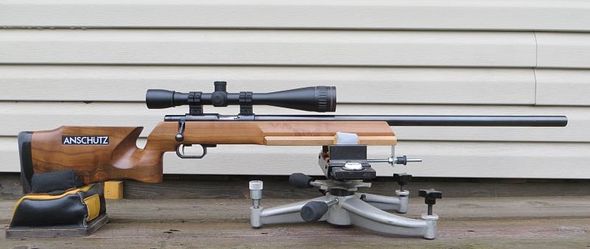

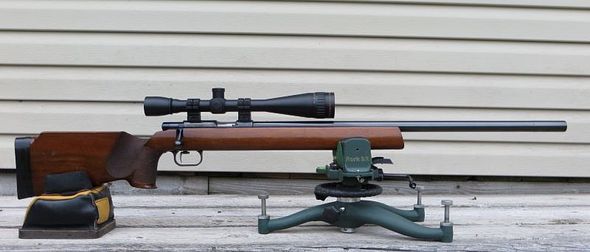

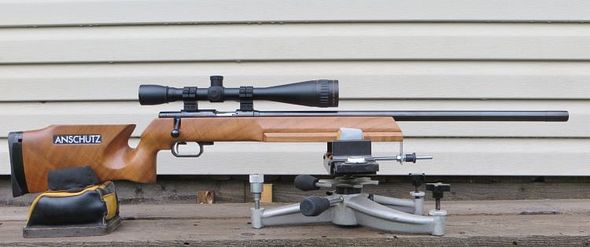

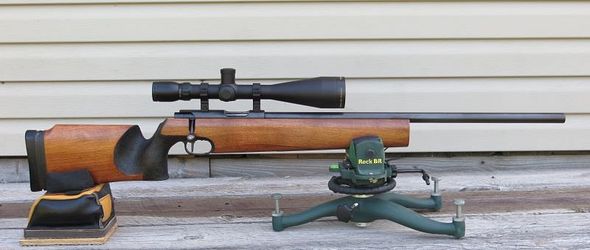

Below, for example, is a 1974-made Anschutz 1407 barreled action in an Anschutz BR 50 stock. Beneath it is a much newer Anschutz 1913 in a BR 50 stock.




It should be noted that with the right rest, there are some models of unaltered original match rifles that are good for BR shooting, including Walther and Anschutz.

Below is a Walther UIT Spezial, this one probably from 1973 or 1974.



Below is an Anschutz 1411, a prone rifle which is very good from the bench because of it's more bench-friendly stock design. Below it is a picture of the same rifle with a BR 50 stock.




If you are handy with woodworking and woodworking tools, you can design and make a stock or "rig" for a barreled action.

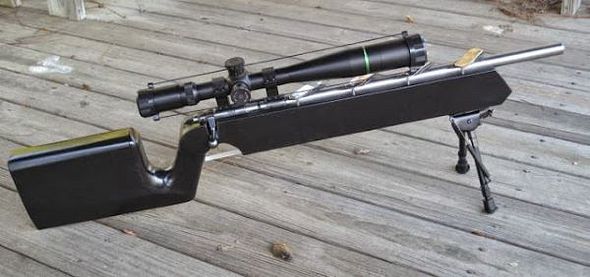

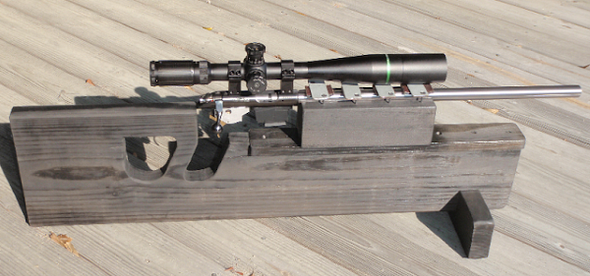

Some can be relatively simple, such as the rig made for this CZ 455 action with a Lilja barrel.

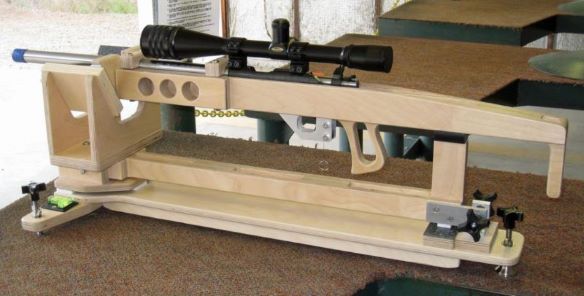

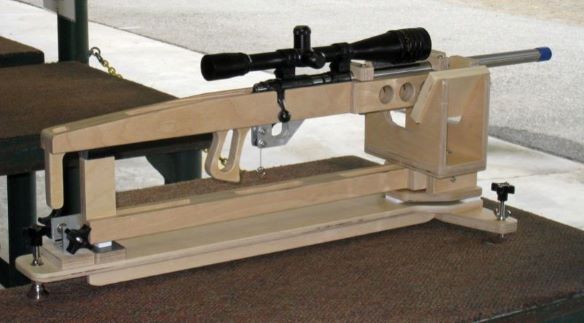

Others can be a little more work as seen below with this CZ 455 with a Lilja barrel made by engineer Albert Highe.

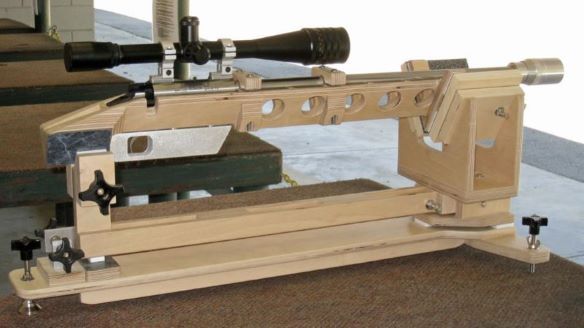

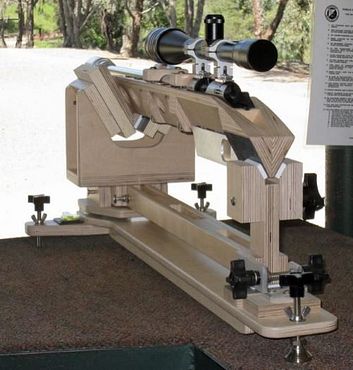

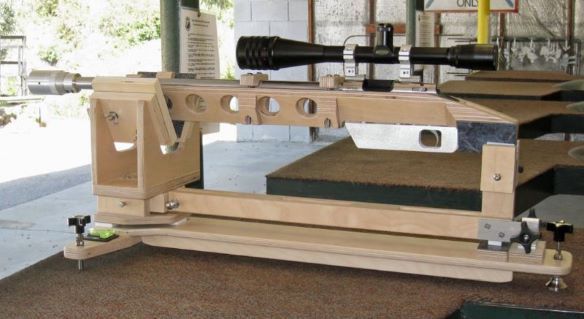

Something similar can be done with a top-of-the-line 2500X barreled action, also made by Highe.




There are a few options that are more or less "off-the-shelf" designs for .22LR benchrest shooting....Others can be a little more work......

Yes, these are exactly what I am looking for. Thank you Sir for the info about Brands, these are very helpful.
I am a mechanical designer, worked in manufacturing and fabrications directly for more then two decades before moving into office. Semi retired recently so have plenty of time on my plate as well.
Also I have access to friends CNC machines when they have a low workload, and have my own 3d printers for quick prototypes.

Interestingly I have not seen 22LR is using this scope setup? Just look at it how this guy mounted the rings in front of the turrets - no face contact needed for sighting.

View attachment 626910

firearms have a section of action where the loading cycle occurs... convenient place to mount optics. personally, I am not a fan of using my turret block as a hinge. Rimfire has more recoil then you may be thinking.

Rail guns is what you may be thinking about. I like the 'organic' approach. simple and effective. Ultimately, in rimfire, doesn't really change the end result.

As I said, making a stock for purely BR shooting is easy...

Jerry

...Rail guns is what you may be thinking about. I like the 'organic' approach. simple and effective...As I said, making a stock for purely BR shooting is easy...Jerry

Yes, these "naked" guns is exactly what I had in mind. I don't need a 22 for plinking around in the bush, but I want one for my gunrange only and for BR only.
Barrel and action and triggers....
Thank you for the Brands, I can have now a homework to start.

This is my .25 FX Impact. Over 10K shots on it in less then two years and not a single shot offhand or from a bag.

View attachment 626925

There are a couple 1903 with stocks on ####### for around 1300. Incase you ever want to shoot it regular.

54 & 64 is a type of action. So there are models built off them.

the 54 and derivatives are considered the Olympic level actions

The 64 and family were considered the trainer and hunting grade of actions.

Can either produce superb performance... yes.

I prefer the 54 and its lineage.... under the Annie banner, will cost much more.

Jerry
