SKS Prototype stock (update 02-02-2014) post 244

zeuce said:
are you designing your own buttstock or will you just bolt on existing ones?
Click to expand...
,

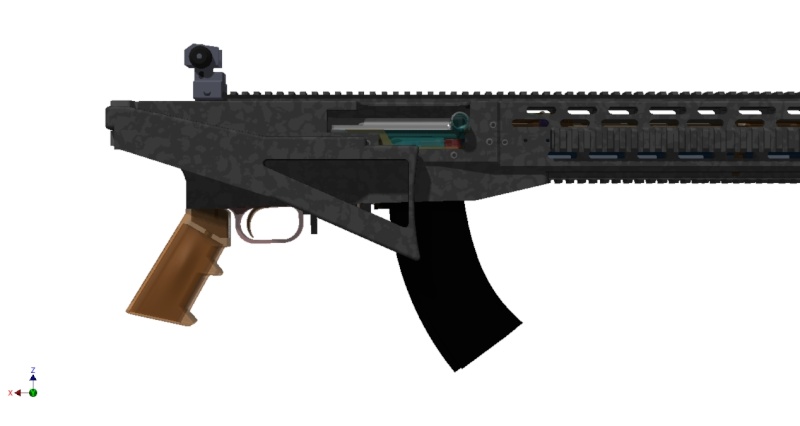

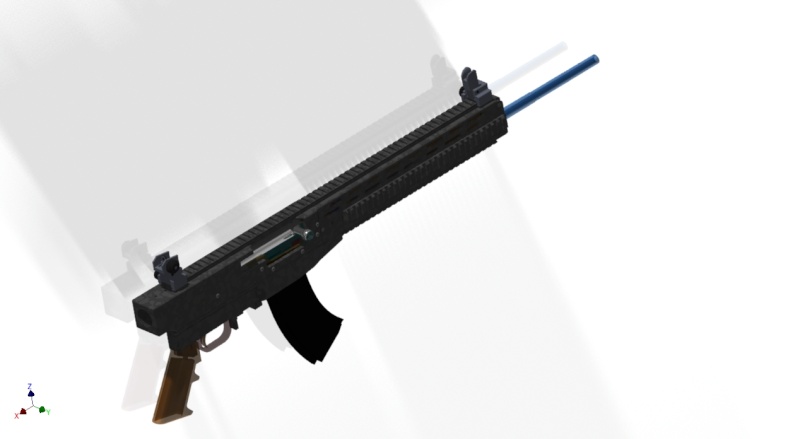

for now any ar15 stock with a millspec tube will fit , but i'm thinking to maybe draw a folding stock , or just an adapter , my first idea was to use the ar15 stuff to have a cheaper unit cost

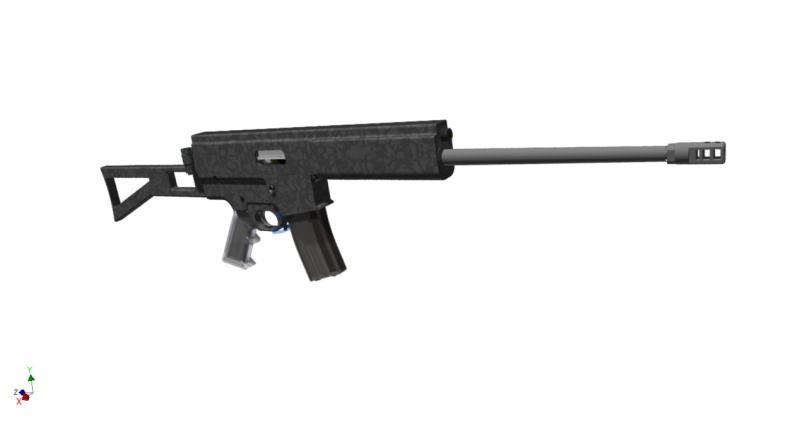

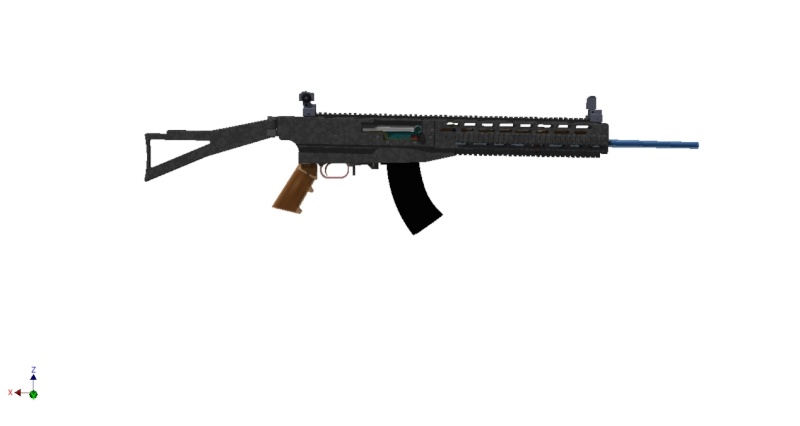

i was looking at that and that thing will look crazy with a folding stock but i i may have to redraw the the back of the stock for that ,

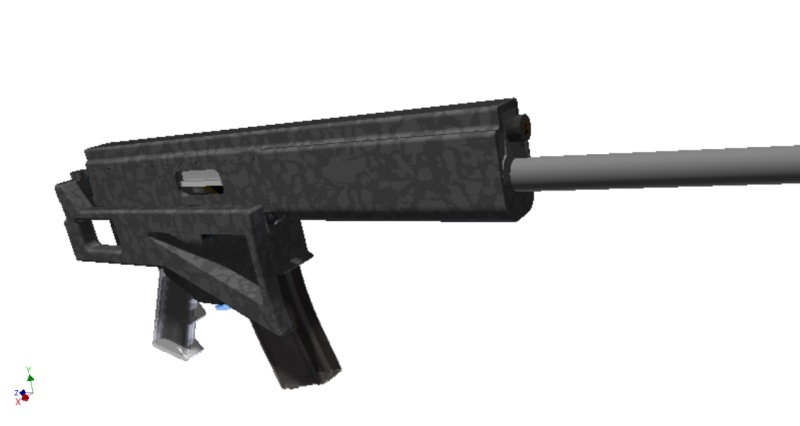

probably the sks mechanic is very long , for now to the end of the stock to the ejection port it have more than 8 inch , so it may be possible to draw something , maybe like my other drawing in progress like this one ,

this one is just a idea , this project is a little complicated ^^ in term of mechanic and law




i can do it, it just i dont have to much time to spend on that for today , i think for the fiorst one we will stay on the ar15 stock , after that if all work like it suppose to be , i will upgrade some thing ,

you might want to mill a taper just above where the shell ejects. take a look at the magwedge kwik rail for refrence. Im sure its milled like that for a reason but im not an engineer...

Tag for interest. I can't wait to see prototype.

Is it possible to have redesign the upper be able to use stripper clip ? the wonderful thing about sks is their stripier clip ability, no magazine to mess up with.

It will not be me that will mill the stock but someone else , he working on that we dont know how much time it will take , but with it first observation and mine it will take a long time to mills , probably in some week we will have the stock finished , we may have to work on some little modification to be able to mill some place , but we will have one ! after that the testing will be the funny parts ^^or not !

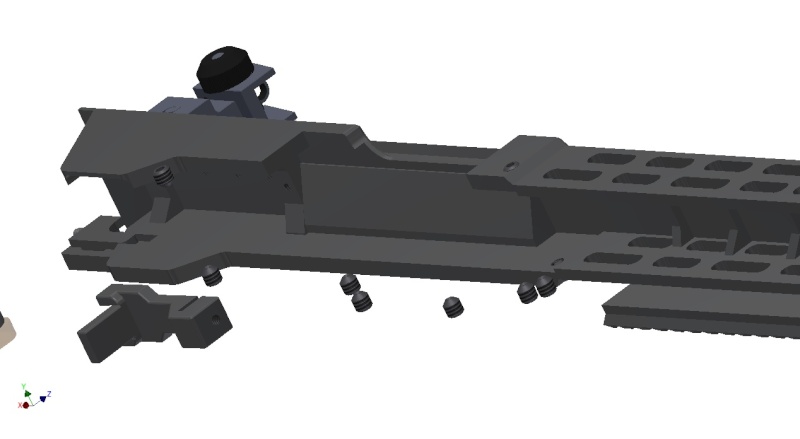

we may probably have a 3d printed prototype soon but a little different from the last pic because of the size of the printer so i had to make some mod to be able to put the parts in and bolt them but the first one will be functional with a scope or a red dot on it ,

what it will look like just to test if the quote are good in the receiver trigger area and see if we will have any problem with the ejector port that will look ugly but it will work ^^

and after that we will make the real one in aluminum
